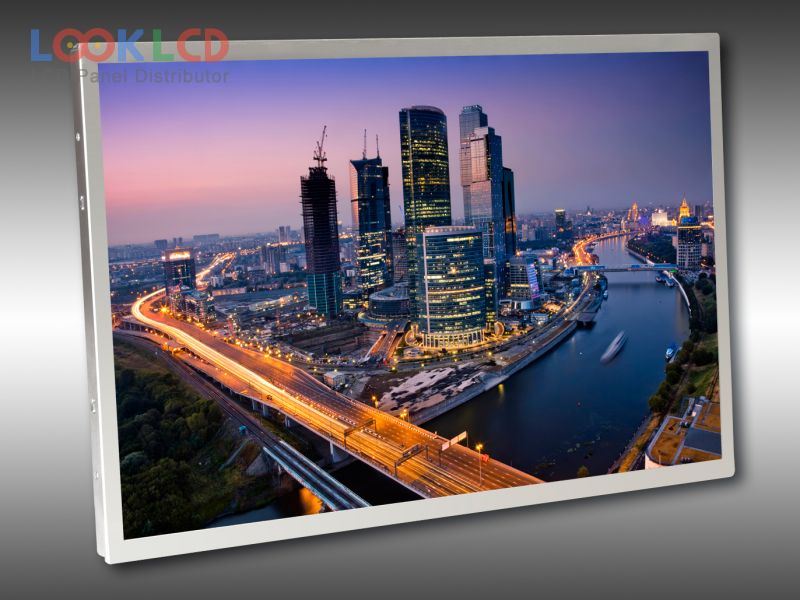

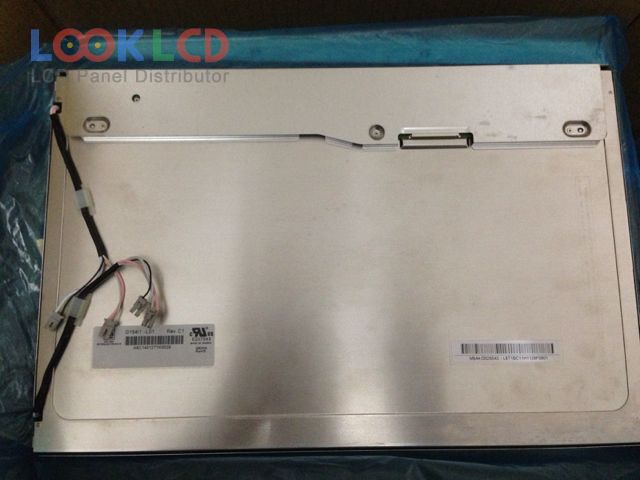

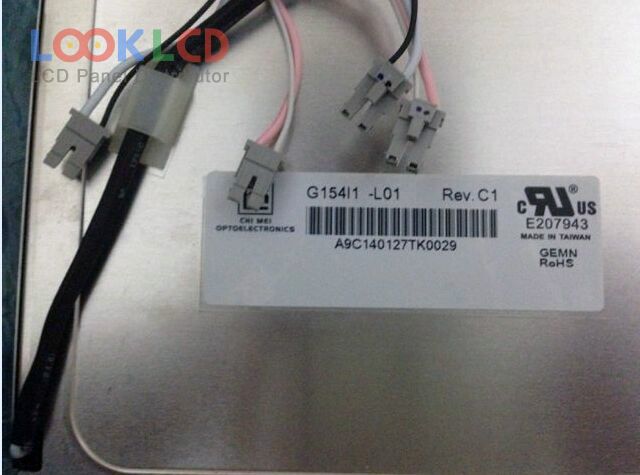

| PartNumber | G154I1-L01 |
| Marca | Innolux |
| mărimea | 15.4 |
| Aplicație | CNS |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 700 |
| CR | 700:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | CMO |
| model de panou | G154I1-L01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.4 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 331.2×207 mm |
| contur | 352×230×16.3 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (3H), Antireflection |
| luminozitatea | 700 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 5/11 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | CNS |
