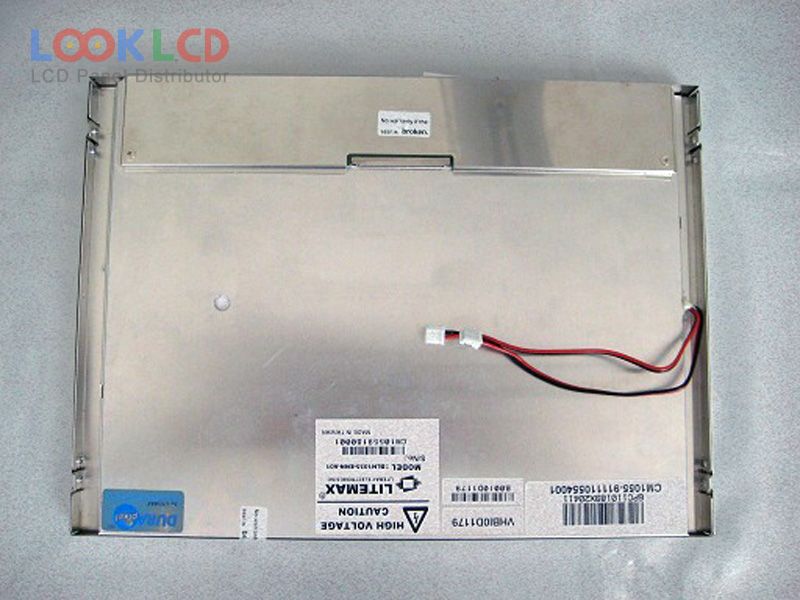

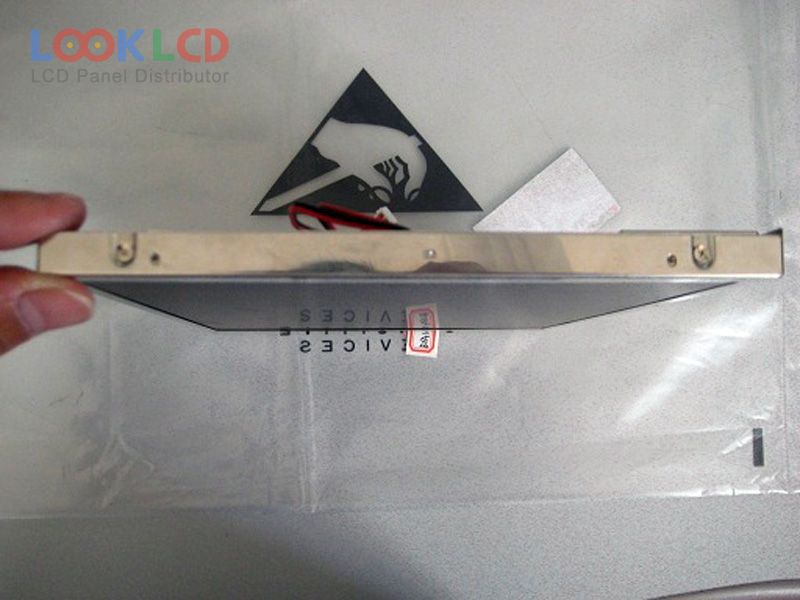

| PartNumber | DLH1055 |
| Marca | LiteMax |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 1000 |
| CR | 1200:1 |
| Culori | 16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | LiteMax |
| model de panou | DLH1055 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | FFS, Normally Black, Transmissive |
| Zonă activă | 210.4×157.8 mm |
| contur | 238.1×173 mm |
| suprafaţă | |
| luminozitatea | 1000 cd/m² (Typ.) |
| Raport de contrast | 1200:1 (Typ.) |
| culorile afișajului | 16.2M (6-bit + FRC) |
| timp de raspuns | 40 (Typ.)(Tr+Td) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 30 pins |
| aplicarea | IA |
