| PartNumber | COM70H7M44UTC |
| Marca | Ortustech |
| mărimea | 7.0 |
| Aplicație | Industrial Outdoor H |
| Rezoluţie | 800×480 |
| Compoziţie | LCM , a-Si TFT-LCD |
| Luminozitate | |
| CR | 900:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | 7S2P |
| Interfață | LVDS |
| producător | Ortustech |
| numele modelului | COM70H7M44UTC |
| marimea ecranului | 7.0 inch |
| tipul de ecran | LCM , a-Si TFT-LCD |
| numărul de pixeli | 800(RGB)×480 (WVGA) 133PPI |
| aranjament | RGB Vertical Stripe |

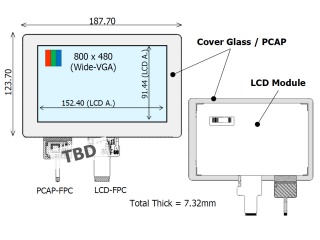

| zona activa (mm) | 152.4 × 91.44 (H×V) |
| contur (mm) | 187.7 × 123.7 (H×V×D) |
| zona rama (mm) | - |
| tratament | Hard coating (3H) |
| luminanţă | 900 cd/m² (Typ.) |
| Raport de contrast | 900 : 1 (Typ.) (TM) |
| unghi de vedere | 80/80/80/80 (Min.)(CR≥10) |
| raspuns | 50 (Typ.)(Tr+Tf) ms |
| vedere buna la | Symmetry |
| modul de lucru | VA, Normally Black, Transflective |
| adâncimea culorii | 262K/16.7M 50% NTSC |
| lumina de fundal | 7S2P WLED , 50K hours , No Driver |
| masa | TBD |
| folosit pentru | Industrial Outdoor High Brightness |
| rată de reîmprospătare | 60Hz |
| touch screen | PCAP |
| tipul semnalului | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| alimentare cu tensiune | 3.3V (Typ.) |
| max. evaluări | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |
