| PartNumber | COM70H7M24ULC |
| Marca | Ortustech |
| mărimea | 7.0 |
| Aplicație | Industrial Outdoor H |
| Rezoluţie | 800×480 |
| Compoziţie | a-Si TFT-LCD, LCM |
| Luminozitate | |
| CR | 700:13:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca | Ortustech |
| model | COM70H7M24ULC |
| dimensiunea diagonalei | 7.0 inch |
| tip | a-Si TFT-LCD, LCM |
| format de pixeli | 800(RGB)×480 [WVGA] 133PPI |
| configurație | RGB Vertical Stripe |

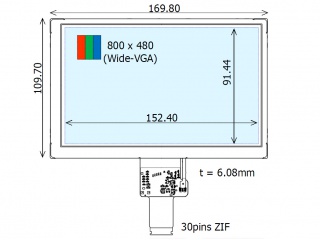

| Zonă activă | 152.4(H)×91.44(V) mm |
| contur dim. | 169.8(H)×109.7(V) ×6.11(D) mm |
| zona rama | - |
| tratament | Hard coating (3H) |
| luminanţă | 790 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| direcția vizualizării | Symmetry |
| timp de raspuns | 60/40 (Max.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Min.)(CR≥10) |
| mod de operare | VA, Normally Black, Transflective |
| culoare suport | 262K/16.7M 50% NTSC |
| sursă de lumină | WLED [8S2P] , 100K hours , W/O Driver |
| greutate | 170g (Typ.) |
| proiectat pentru | Industrial Outdoor High Brightness Automotive Display |
| rata de cadre | 60Hz |
| panou tactil | Without |
| tipul de interfață | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| alimentare electrică | 3.3V (Typ.) |
| mediu inconjurator | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 6.8G (66.64 m/s²) |
