| PartNumber | COM57T5N07RSS |
| Marca | Ortustech |
| mărimea | 5.7 |
| Aplicație | Industrial |
| Rezoluţie | 640×480 |
| Compoziţie | a-Si TFT-LCD , LCM |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | Parallel |
| marca | Ortustech |
| dimensiunea diagonalei | 5.7 inch |
| format de pixeli | 640(RGB)×480 [VGA] 141PPI |

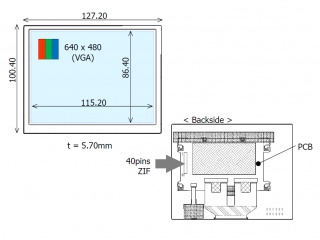

| Zonă activă | 115.2(H)×86.4(V) mm |
| zona rama | - |
| luminanţă | 500 cd/m² (Typ.) |
| direcția vizualizării | Symmetry |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10) |
| culoare suport | 262K 50% NTSC |
| greutate | - |
| rata de cadre | 60Hz |
| tipul de interfață | Parallel RGB (1 ch, 6-bit) Connector |
| mediu inconjurator | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | COM57T5N07RSS |
| tip | a-Si TFT-LCD , LCM |
| configurație | RGB Vertical Stripe |
| contur dim. | 127.2(H)×100.4(V) mm |
| tratament | Hard coating (3H) |
| Raport de contrast | 1000:1 (Typ.) (TM) |
| timp de raspuns | - |
| mod de operare | IPS, Normally Black, Transmissive |
| sursă de lumină | WLED [5S3P] , 50K hours , With LED Driver |
| proiectat pentru | Industrial |
| panou tactil | Without |
