| PartNumber | COM48H4N77ULC |
| Marca | Ortustech |
| mărimea | 4.8 |
| Aplicație | Handheld & PDA |
| Rezoluţie | 720×1280 |
| Compoziţie | a-Si TFT-LCD , LCM |
| Luminozitate | |
| CR | 700:13:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca | Ortustech |
| dimensiunea diagonalei | 4.8 inch |
| format de pixeli | 720(RGB)×1280 [WXGA] 309PPI |
| Zonă activă | 59.184(H)×105.216(V) mm |
| zona rama | - |
| luminanţă | 300 cd/m² (Typ.) |
| direcția vizualizării | Symmetry |
| unghi de vedere | 80/80/80/80 (Min.)(CR≥10) |
| culoare suport | 16.7M 50% NTSC |
| greutate | 25.2g (Typ.) |
| rata de cadre | - |
| tipul de interfață | MIPI (4 data lanes) , 26 pins Connector |
| alimentare electrică | 1.9/2.9V (Typ.)(IOVCC/VCC) |
| mediu inconjurator | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| model | COM48H4N77ULC |
| tip | a-Si TFT-LCD , LCM |
| configurație | RGB Vertical Stripe |

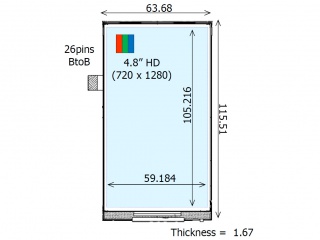

| contur dim. | 63.68(H)×115.51(V) ×1.87(D) mm |
| tratament | Hard coating (2H) |
| Raport de contrast | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| timp de raspuns | 40/60 (Max.)(Tr/Td) |
| mod de operare | VA, Normally Black, Transflective |
| sursă de lumină | WLED [9S1P] , 20K hours , W/O Driver |
| proiectat pentru | Handheld & PDA |
| panou tactil | Without |
