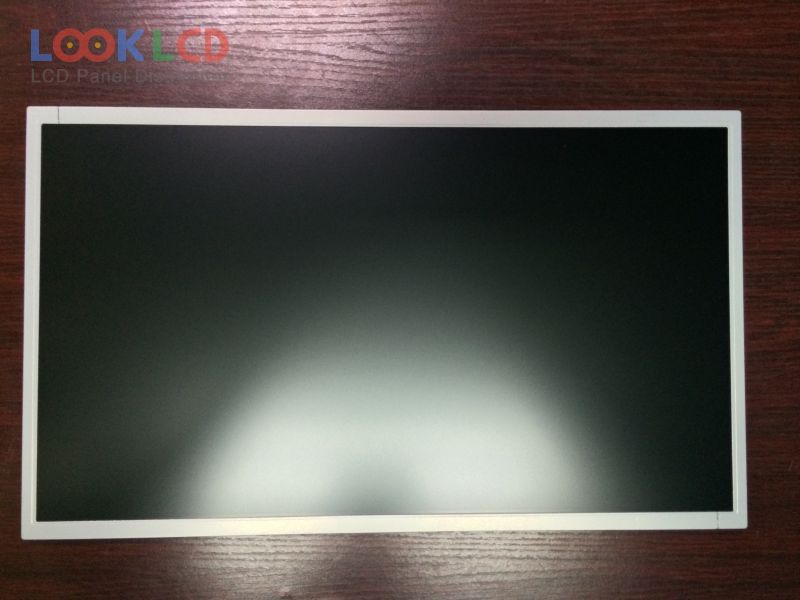

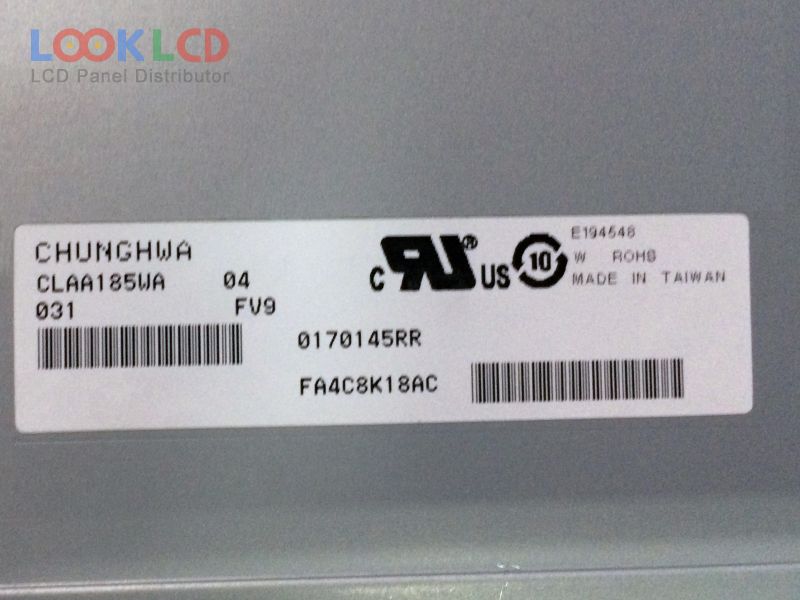

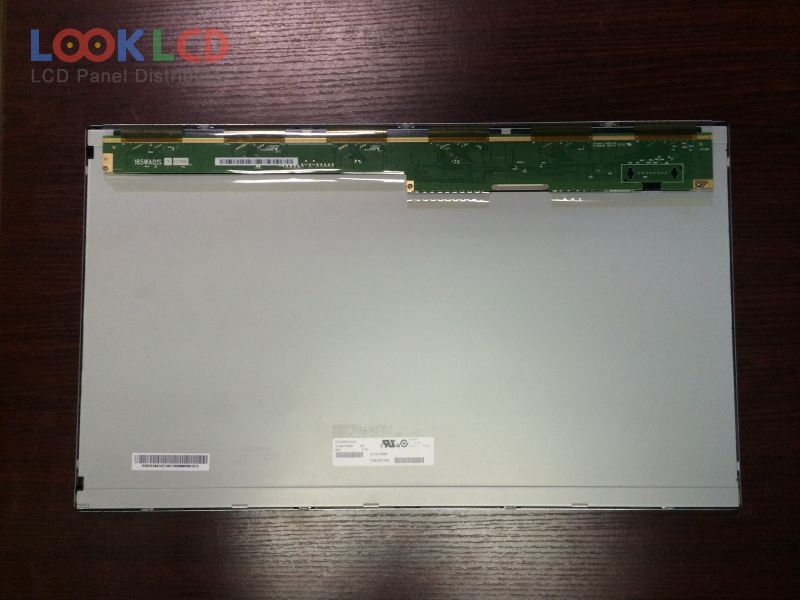

| PartNumber | CLAA185WA04 |
| Marca | CPT |
| mărimea | 18.5 |
| Aplicație | DMPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA185WA04 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 18.5 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 409.8×230.4 mm |
| contur | 430.37×254.6×11.5 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC) |
| timp de raspuns | 5 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
