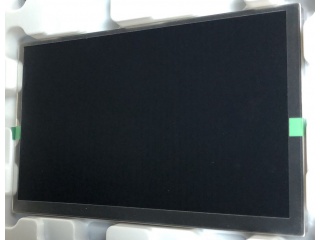

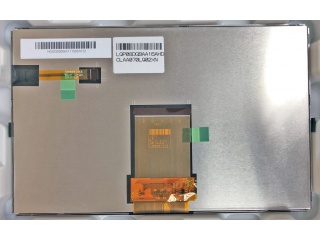

| PartNumber | CLAA070LQ02 XN |
| Marca | CPT |
| mărimea | 7.0 |
| Aplicație | Automotive Display |
| Rezoluţie | 800×480 |
| Compoziţie | LCM, a-Si TFT-LCD |
| Luminozitate | |
| CR | 900:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | 7S2P |
| Interfață | LVDS |
| producător | CPT |
| numele modelului | CLAA070LQ02 XN |
| marimea ecranului | 7.0 inch |
| tipul de ecran | LCM, a-Si TFT-LCD |
| numărul de pixeli | 800(RGB)×480 (WVGA) 133PPI |
| aranjament | RGB Vertical Stripe |
| zona activa (mm) | 152.4 × 91.44 (H×V) |
| contur (mm) | 165 × 104 × 7.3 (H×V×D) |
| zona rama (mm) | 154.4 × 93.44 (H×V) |
| tratament | Antiglare (Haze 25%) |
| luminanţă | 760 cd/m² (Typ.) |
| Raport de contrast | 900 : 1 (Typ.) (TM) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| raspuns | 25 (Typ.)(Tr+Tf) ms |
| vedere buna la | Symmetry |
| modul de lucru | HFFS, Normally Black, Transmissive |
| adâncimea culorii | 262K/16.7M 70% NTSC |
| lumina de fundal | 7S2P WLED , 30K hours , No Driver |
| masa | 175g (Typ.) |
| folosit pentru | Automotive Display |
| rată de reîmprospătare | 60Hz |
| touch screen | Without |
| tipul semnalului | LVDS (1 ch, 6/8-bit) , FPC 60 pins |
| alimentare cu tensiune | 3.3/13.0/20.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| max. evaluări | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
