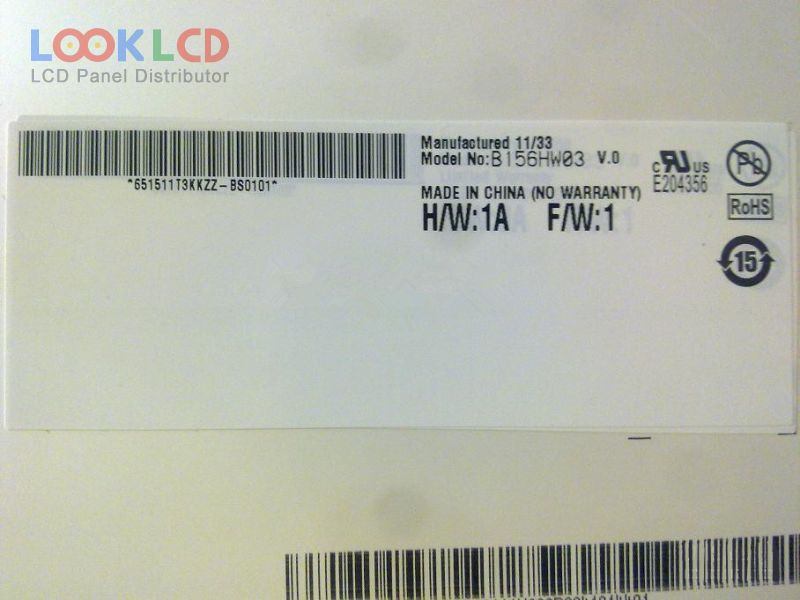

| PartNumber | B156HW03 V0 |
| Marca | AUO |
| mărimea | 15.6 |
| Aplicație | NBPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | B156HW03 V0 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 344.16×193.59 mm |
| contur | 359.5×223.8×4.1 mm |
| stilul formei | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193160% |
| timp de raspuns | 8 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (2 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
