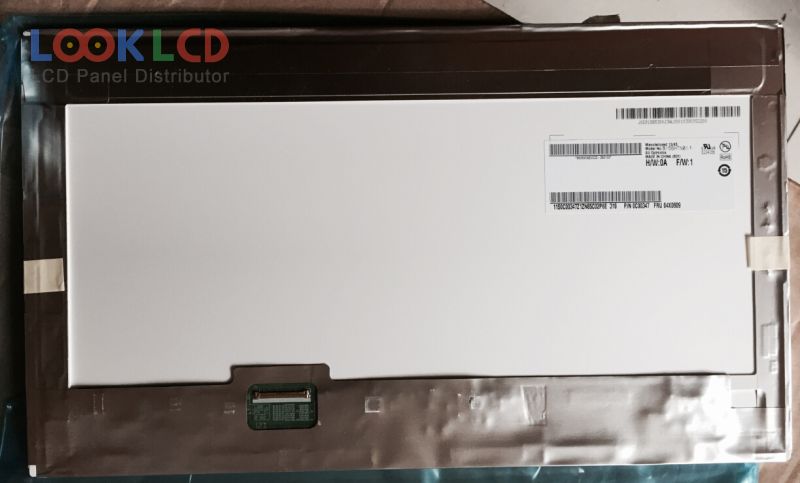

| PartNumber | B156HTN01.1 |
| Marca | AUO |
| mărimea | 15.6 |
| Aplicație | NBPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 270 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | B156HTN01.1 20 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 344.16×193.59 mm |
| contur | 359.3×209.5×5.8 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Antiglare (Haze 42%), Hard coating (2H), Reflection 3.0% (Max.) |
| luminozitatea | 270 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193195% |
| timp de raspuns | 8 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (2 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| B156HAK01.0 | AUO | 15.6 | 1920×1080 |
| B156HAN01.2 | AUO | 15.6 | 1920×1080 |
| B156HAT01.0 | AUO | 15.6 | 1920×1080 |
| B156HB01 V0 | AUO | 15.6 | 1920×1080 |
| B156HW01 V1 | AUO | 15.6 | 1920×1080 |
| B156HW01 V3 | AUO | 15.6 | 1920×1080 |
| B156HW01 V4 | AUO | 15.6 | 1920×1080 |
| B156HW01 V7 | AUO | 15.6 | 1920×1080 |
| B156HW02 V1 | AUO | 15.6 | 1920×1080 |
| B156HW03 V0 | AUO | 15.6 | 1920×1080 |
| B133XTN01.6 HW0A | AUO | 13.3 | 1366×768 |
| B141EW04 V6 | AUO | 14.1 | 1280×800 |
| LP133WX2-TLGV | LG Display | 13.3 | 1280×800 |
| LP140WH6-TJA1 | LG Display | 14.0 | 1366×768 |
| LP154WX4-TLC8 | LG Display | 15.4 | 1280×800 |
| LTN133AT09-G02 | Samsung | 13.3 | 1280×800 |
| LTN133AT17-H01 | Samsung | 13.3 | 1366×768 |
| LTN156AT30-W01 | Samsung | 15.6 | 1366×768 |
| LTN170BT09-001 | Samsung | 17.0 | 1440×900 |
| NV133FHM-N43 | BOE | 13.3 | 1920×1080 |
