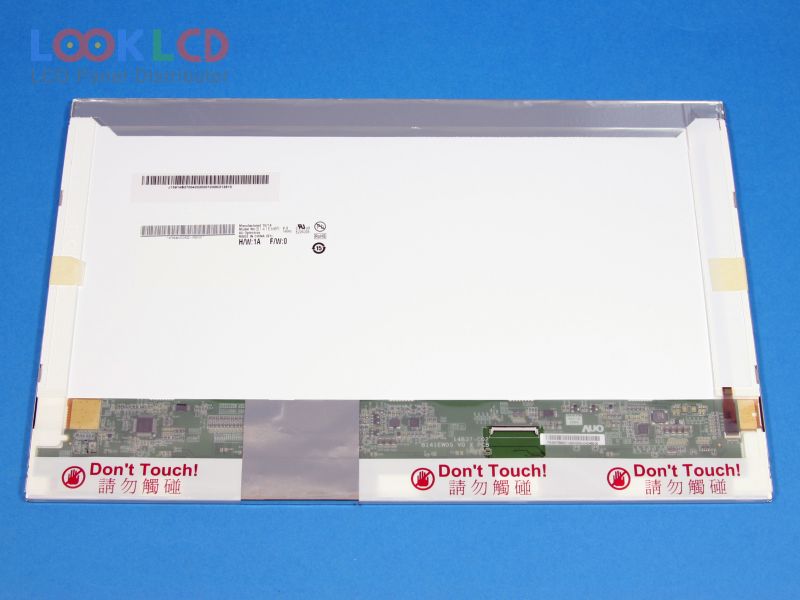

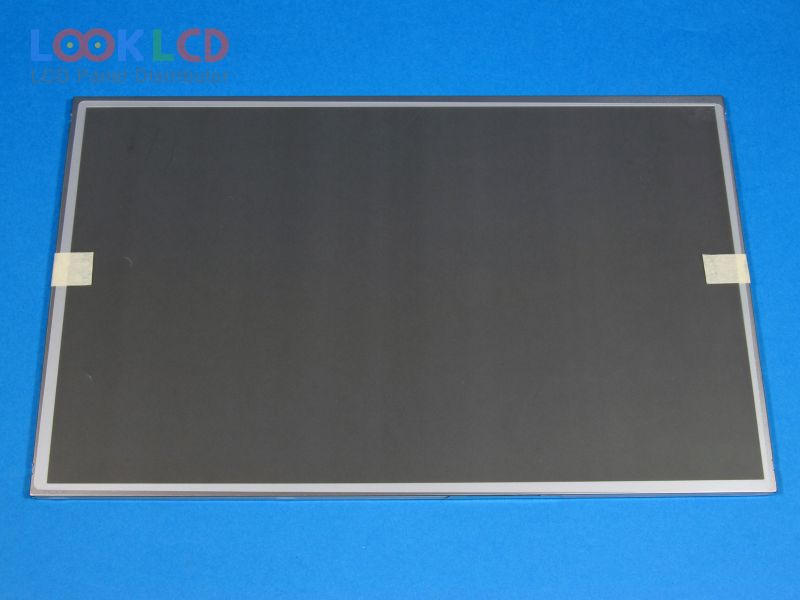

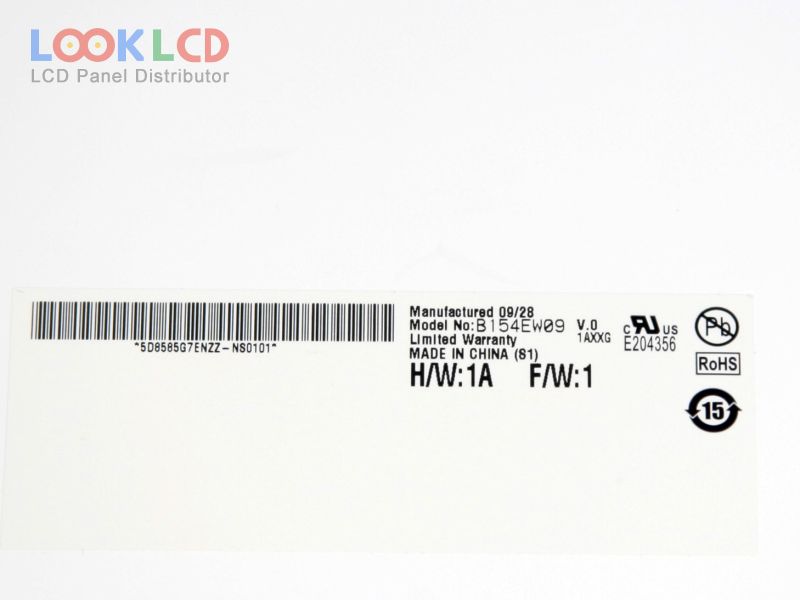

| PartNumber | B154EW09 V0 |
| Marca | AUO |
| mărimea | 15.4 |
| Aplicație | NBPC |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 220 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | B154EW09 V0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.4 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 331.2×207 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 220 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 8 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| B154EW01 V4 | AUO | 15.4 | 1280×800 |
| B154EW01 V9 | AUO | 15.4 | 1280×800 |
| B154EW02 V0 | AUO | 15.4 | 1280×800 |
| B154EW02 V1 | AUO | 15.4 | 1280×800 |
| B154EW02 V6 | AUO | 15.4 | 1280×800 |
| B154EW02 V7 | AUO | 15.4 | 1280×800 |
| B154EW04 V7 | AUO | 15.4 | 1280×800 |
| B154EW08 V1 | AUO | 15.4 | 1280×800 |
| B154EW09 V0 | AUO | 15.4 | 1280×800 |
| B154EW09 V2 | AUO | 15.4 | 1280×800 |
| B133EW04 V0 | AUO | 13.3 | 1280×800 |
| B140XTN02.0 | AUO | 14.0 | 1366×768 |
| B154SW01 V2 | AUO | 15.4 | 1680×1050 |
| B173RW01 V3 | AUO | 17.3 | 1600×900 |
| LP141WX5-TLN1 | LG Display | 14.1 | 1280×800 |
| LP154WX4-TLCB | LG Display | 15.4 | 1280×800 |
| LTN106W1-L01 | Samsung | 10.6 | 1280×768 |
| LTN150XG-L08 | Samsung | 15.0 | 1024×768 |
| LTN173KT01-W01 | Samsung | 17.3 | 1600×900 |
| N150P2-L06 | IDTech | 15.0 | 1400×1050 |
