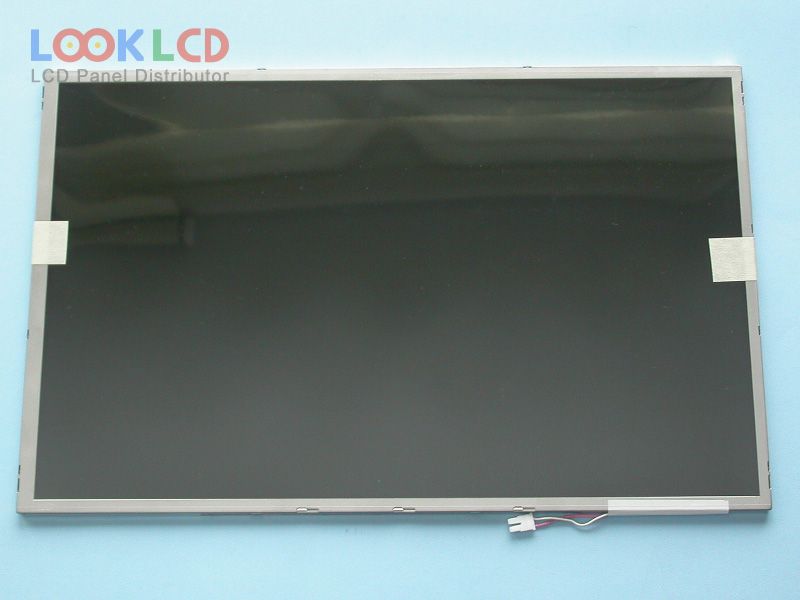

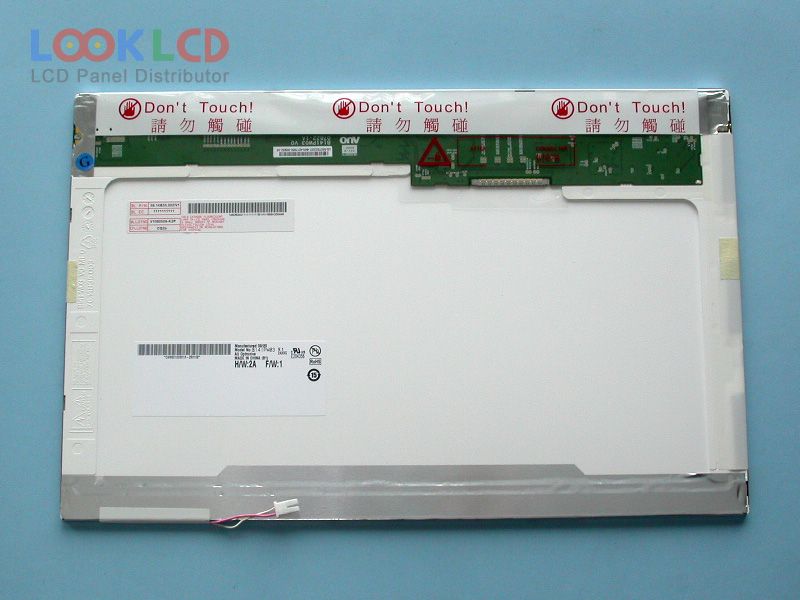

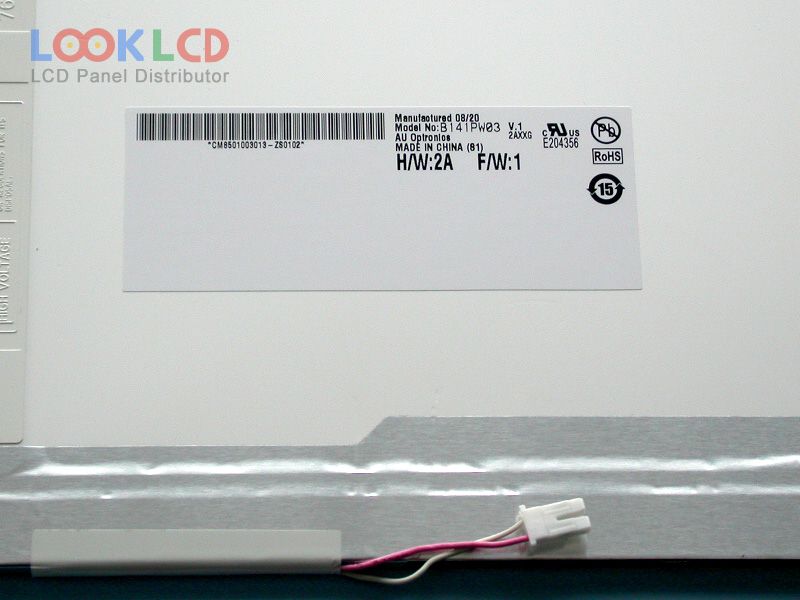

| PartNumber | B141PW03 V1 |
| Marca | AUO |
| mărimea | 14.1 |
| Aplicație | NBPC |
| Rezoluţie | 1440×900 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | B141PW03 V1 3 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 14.1 inch |
| rezoluţie | 1440(RGB)×900 , WXGA+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 303.48×189.675 mm |
| contur | 319.5×205.5×5.5 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 8 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/20/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| B141PW03 V0 | AUO | 14.1 | 1440×900 |
| B141PW03 V1 | AUO | 14.1 | 1440×900 |
| B141PW04 V0 HW0A | AUO | 14.1 | 1440×900 |
| B141PW04 V0 HW1A | AUO | 14.1 | 1440×900 |
| B141PW04 V0 HW2A | AUO | 14.1 | 1440×900 |
| B141PW04 V1 HW0A | AUO | 14.1 | 1440×900 |
| HT14X13-102 | HYDIS | 14.1 | 1024×768 |
| LP141WX5-TLN1 | LG Display | 14.1 | 1280×800 |
| M141NWW1-102 | IVO | 14.1 | 1280×800 |
| N141C1-L05 | Innolux | 14.1 | 1440×900 |
| B116XW03 V1 | AUO | 11.6 | 1366×768 |
| B133EW03 V1 | AUO | 13.3 | 1280×800 |
| B156XTN05.0 | AUO | 15.6 | 1366×768 |
| B170PW03 V1 | AUO | 17.0 | 1440×900 |
| HB140WX1-400 | BOE | 14.0 | 1366×768 |
| LP156WH2-TLD1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLRA | LG Display | 15.6 | 1366×768 |
| LP171WX2-TLB1 | LG Display | 17.1 | 1440×900 |
| LTN154P3-L05 | Samsung | 15.4 | 1680×1050 |
| LTN154X9-L02 | Samsung | 15.4 | 1280×800 |
