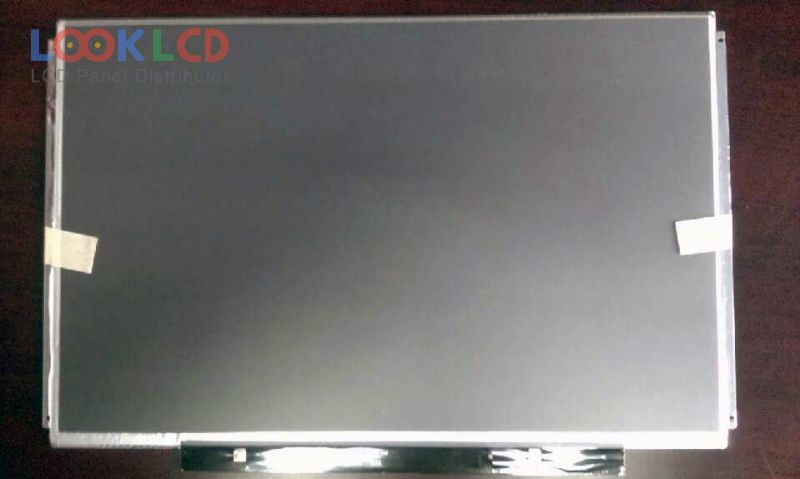

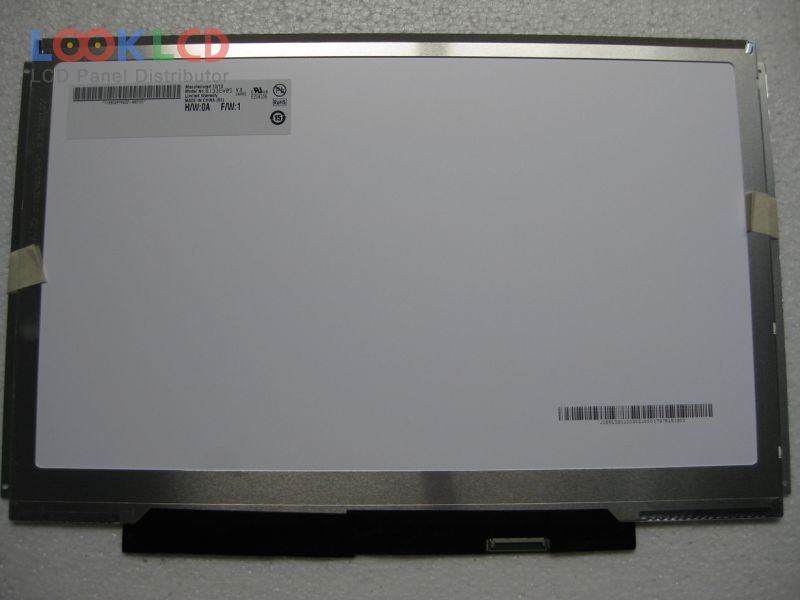

| PartNumber | B133EW05 V0 |
| Marca | AUO |
| mărimea | 13.3 |
| Aplicație | NBPC |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 550:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | B133EW05 V0 2 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 13.3 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 286.08×178.8 mm |
| contur | 303.6×202.5×3.35 mm |
| stilul formei | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 550:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 4/12 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| B133EW01 V0 | AUO | 13.3 | 1280×800 |
| B133EW01 V9 | AUO | 13.3 | 1280×800 |
| B133EW03 V0 | AUO | 13.3 | 1280×800 |
| B133EW03 V2 | AUO | 13.3 | 1280×800 |
| B133EW04 V0 | AUO | 13.3 | 1280×800 |
| B133EW04 V4 | AUO | 13.3 | 1280×800 |
| B133EW05 V0 | AUO | 13.3 | 1280×800 |
| B133EW06 V0 | AUO | 13.3 | 1280×800 |
| B133EW07 V1 | AUO | 13.3 | 1280×800 |
| B133EW07 V2 | AUO | 13.3 | 1280×800 |
| B121EW10 V2 | AUO | 12.1 | 1280×800 |
| LP121WX3-TPB1 | LG Display | 12.1 | 1280×800 |
| LTM09C362Z | TOSHIBA | 8.9 | 1024×600 |
| LTN154X3-L06-J | Samsung | 15.4 | 1280×800 |
| LTN160HT02-001 | Samsung | 16.0 | 1920×1080 |
| N121I2-L01 | Innolux | 12.1 | 1280×800 |
| N133BGE-EB1 | Innolux | 13.3 | 1366×768 |
| N156B3-L0A | Innolux | 15.6 | 1366×768 |
| N156B6-L3D | Innolux | 15.6 | 1366×768 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
