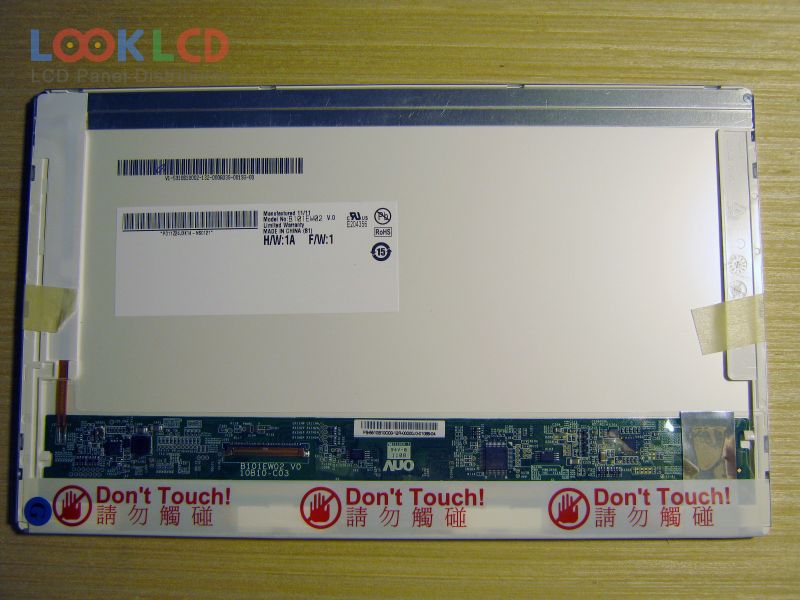

| PartNumber | B101EW02 V0 |
| Marca | AUO |
| mărimea | 10.1 |
| Aplicație | NBPC |
| Rezoluţie | 1280×720 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | B101EW02 V0 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1280(RGB)×720 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 222.72×125.28 mm |
| contur | 235×143.2×5.2 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 12/4 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| B101EAN01.2 | AUO | 10.1 | 1280×800 |
| B101EAN01.5 | AUO | 10.1 | 1280×800 |
| B101EAN01.7 | AUO | 10.1 | 1280×800 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| B101EVT04.0 | AUO | 10.1 | 1280×800 |
| B101EVT05.0 | AUO | 10.1 | 1280×800 |
| B101EW01 V1 | AUO | 10.1 | 1280×720 |
| B101EW02 V1 | AUO | 10.1 | 1280×720 |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| B101EW05 V1 | AUO | 10.1 | 1280×800 |
| B141EW04 V6 | AUO | 14.1 | 1280×800 |
| BT140GW02 V.0 | Innolux | 14.0 | 1366×768 |
| BT156GW01 V.4 | Innolux | 15.6 | 1366×768 |
| CLAA156WA07A | CPT | 15.6 | 1366×768 |
| LP140WD1-TLM1 | LG Display | 14.0 | 1600×900 |
| LP140WH1-TPD1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLM2 | LG Display | 14.0 | 1366×768 |
| LP141WX1-TLE1 | LG Display | 14.1 | 1280×800 |
| LTD121EWVB | TOSHIBA | 12.1 | 1280×800 |
| LTN154X3-L09-0 | Samsung | 15.4 | 1280×800 |
