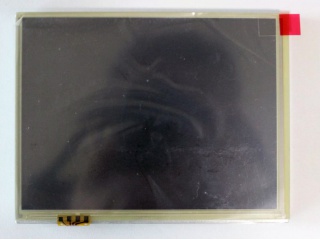

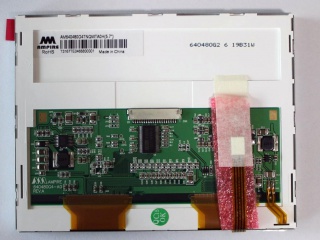

| PartNumber | AM-640480G4TNQW-TA0H |
| Marca | AMPIRE |
| mărimea | 5.7 |
| Aplicație | Industrial |
| Rezoluţie | 640×480 |
| Compoziţie | LCM, a-Si TFT-LCD |
| Luminozitate | |
| CR | 250:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| producător | AMPIRE |
| numele modelului | AM-640480G4TNQW-TA0H |
| marimea ecranului | 5.7 inch |
| tipul de ecran | LCM, a-Si TFT-LCD |
| numărul de pixeli | 640(RGB)×480 (VGA) 141PPI |
| aranjament | RGB Vertical Stripe |
| zona activa (mm) | 115.2 × 86.4 (H×V) |
| contur (mm) | 127 × 98.43 × 9.1 (H×V×D) |
| zona rama (mm) | 118.0 × 89.2 (H×V) |
| tratament | - |
| luminanţă | 450 cd/m² (Typ.) |
| Raport de contrast | 250 : 1 (Typ.) (TM) |
| unghi de vedere | 70/70/50/50 (Typ.)(CR≥10) |
| raspuns | 50 (Typ.)(Tr+Td) ms |
| vedere buna la | 12 o'clock |
| modul de lucru | TN, Normally White, Transmissive |
| adâncimea culorii | 262K 50% NTSC |
| lumina de fundal | WLED , 20K hours , With LED Driver |
| masa | - |
| folosit pentru | Industrial |
| rată de reîmprospătare | 60Hz |
| touch screen | 4-wire Resistive Touch |
| tipul semnalului | LVDS (1 ch, 6-bit) , Connector 20 pins |
| alimentare cu tensiune | 3.3V (Typ.) |
| max. evaluări | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
