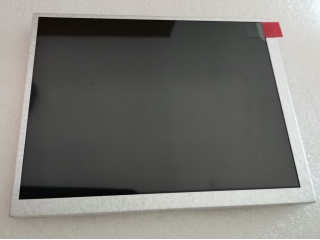

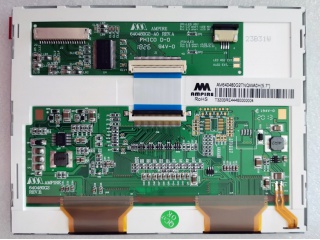

| PartNumber | AM-640480G2TNQW-A0H |
| Marca | AMPIRE |
| mărimea | 5.7 |
| Aplicație | Industrial |
| Rezoluţie | 640×480 |
| Compoziţie | a-Si TFT-LCD, LCM |
| Luminozitate | |
| CR | 250:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca | AMPIRE |
| model | AM-640480G2TNQW-A0H |
| dimensiunea diagonalei | 5.7 inch |
| tip | a-Si TFT-LCD, LCM |
| format de pixeli | 640(RGB)×480 [VGA] 141PPI |
| configurație | RGB Vertical Stripe |
| Zonă activă | 115.2(H)×86.4(V) mm |
| contur dim. | 127(H)×98.43(V) ×7.8(D) mm |
| zona rama | 118.0(H)×89.2(V) mm |
| tratament | Antiglare, Hard coating (3H) |
| luminanţă | 500 cd/m² (Typ.) |
| Raport de contrast | 250:1 (Typ.) (TM) |
| direcția vizualizării | 12 o'clock |
| timp de raspuns | 50 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/50/50 (Typ.)(CR≥10) |
| mod de operare | TN, Normally White, Transmissive |
| culoare suport | 262K 50% NTSC |
| sursă de lumină | WLED , 20K hours , With LED Driver |
| greutate | - |
| proiectat pentru | Industrial |
| rata de cadre | 60Hz |
| panou tactil | Without |
| tipul de interfață | LVDS (1 ch, 6-bit) , 20 pins Connector |
| alimentare electrică | 3.3V (Typ.) |
| mediu inconjurator | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
