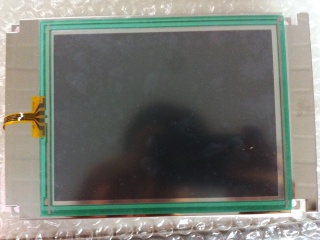

| PartNumber | AM-320240N1TMQW-TW0H-A(R) |
| Marca | AMPIRE |
| mărimea | 5.7 |
| Aplicație | Industrial |
| Rezoluţie | 320×240 |
| Compoziţie | LCM, a-Si TFT-LCD |
| Luminozitate | |
| CR | 350:1 |
| Culori | 65K/262K |
| Iluminare de fundal | 3S7P |
| Interfață | |
| producător | AMPIRE |
| numele modelului | AM-320240N1TMQW-TW0H-A(R) |
| marimea ecranului | 5.7 inch |
| tipul de ecran | LCM, a-Si TFT-LCD |
| numărul de pixeli | 320(RGB)×240 (QVGA) 70PPI |
| aranjament | RGB Vertical Stripe |
| zona activa (mm) | 115.2 × 86.4 (H×V) |
| contur (mm) | 167 × 109 × 14.8 (H×V×D) |
| zona rama (mm) | 118.2 × 89.4 (H×V) |
| tratament | - |
| luminanţă | 400 cd/m² (Typ.) |
| Raport de contrast | 350 : 1 (Min.) (TM) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10) |
| raspuns | 15/35 (Typ.)(Tr/Td) ms |
| vedere buna la | 6 o'clock |
| modul de lucru | TN, Normally White, Transmissive |
| adâncimea culorii | 65K/262K 61% NTSC |
| lumina de fundal | 3S7P WLED , No Driver |
| masa | TBD |
| folosit pentru | Industrial |
| rată de reîmprospătare | 60Hz |
| touch screen | 4-wire Resistive Touch |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
