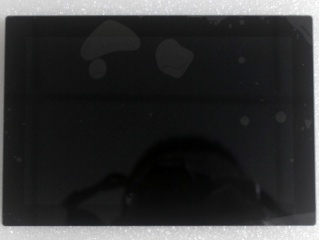

| PartNumber | AM-1280800P4TZQW-T21H |
| Marca | AMPIRE |
| mărimea | 7.0 |
| Aplicație | Industrial |
| Rezoluţie | 1280×800 |
| Compoziţie | a-Si TFT-LCD, LCM |
| Luminozitate | |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca | AMPIRE |
| model | AM-1280800P4TZQW-T21H |
| dimensiunea diagonalei | 7.0 inch |
| tip | a-Si TFT-LCD, LCM |
| format de pixeli | 1280(RGB)×800 [WXGA] 217PPI |
| configurație | RGB Vertical Stripe |
| Zonă activă | 149.76(H)×93.6(V) mm |
| contur dim. | 174(H)×118(V) ×13.63(D) mm |
| zona rama | - |
| tratament | Glare (Haze 0%) |
| luminanţă | 850 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) (TM) |
| direcția vizualizării | Symmetry |
| timp de raspuns | 35 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10) |
| mod de operare | SFT, Normally Black, Transmissive |
| culoare suport | 16.7M 50% NTSC |
| sursă de lumină | WLED [6S4P] , 50K hours , With LED Driver |
| greutate | - |
| proiectat pentru | Industrial |
| rata de cadre | 60Hz |
| panou tactil | PCAP |
| tipul de interfață | LVDS (1 ch, 8-bit) , 20 pins Connector |
| alimentare electrică | 3.3V (Typ.) |
| mediu inconjurator | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
