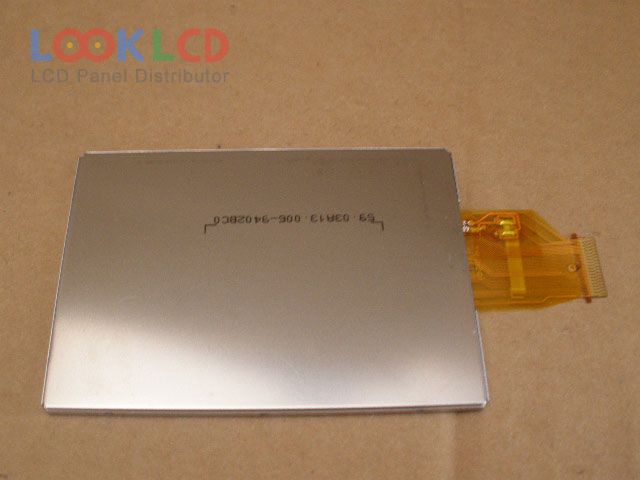

| PartNumber | A030DN01 VC |
| Marca | AUO |
| mărimea | 3.0 |
| Aplicație | DSC |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 300:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | Serial RGB |
| marca panoului | AUO |
| model de panou | A030DN01 VC |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.0 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 60×45 mm |
| contur | 70.2×51.4 mm |
| suprafaţă | Hard coating |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 10/25 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S1PWLEDWithout Driver |
| interfață de semnal | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| tensiune de intrare | 3.3/15/-10V (Typ.)(VDD/VGH/VGL) |
| aplicarea | DSC |
