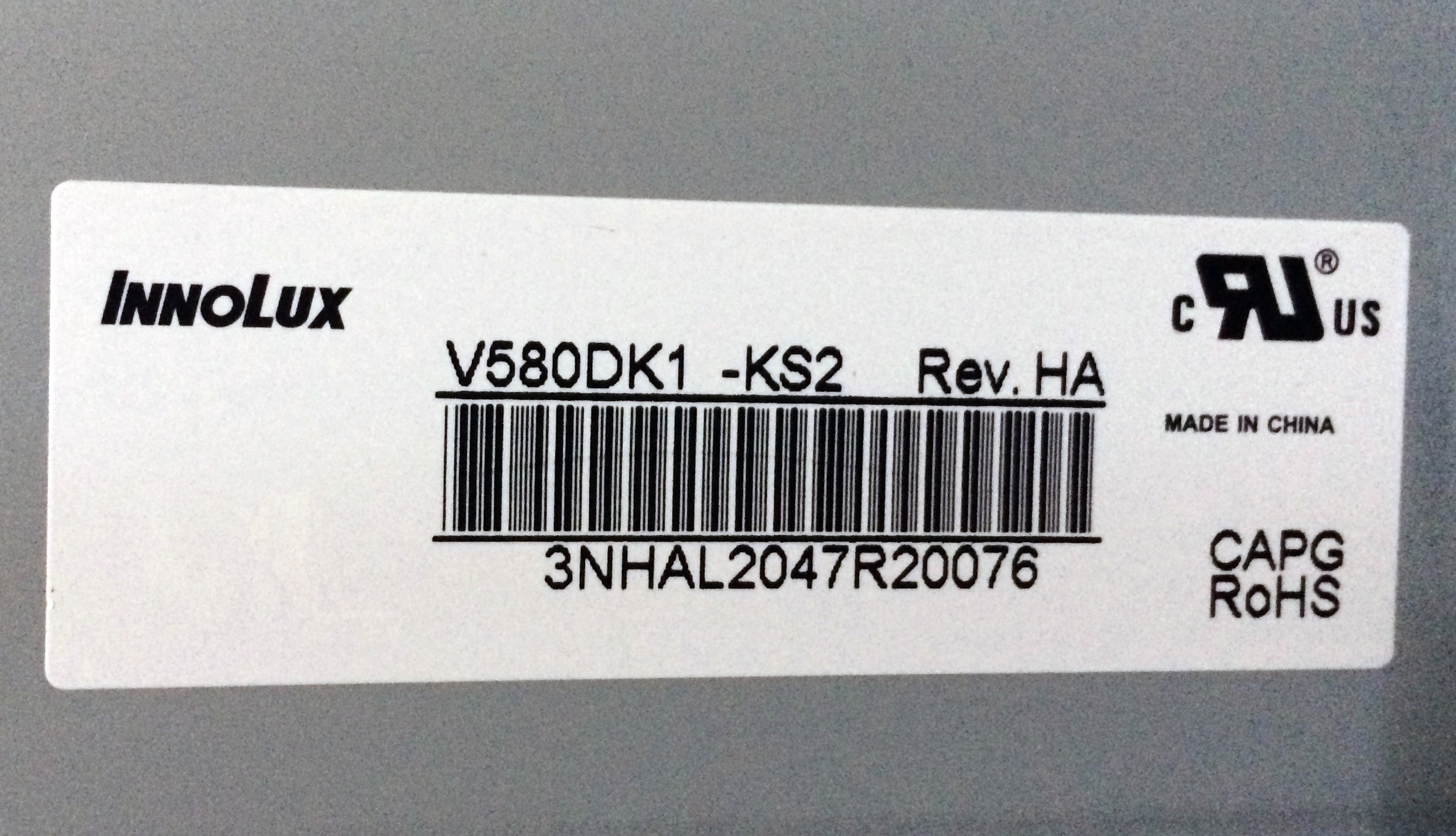

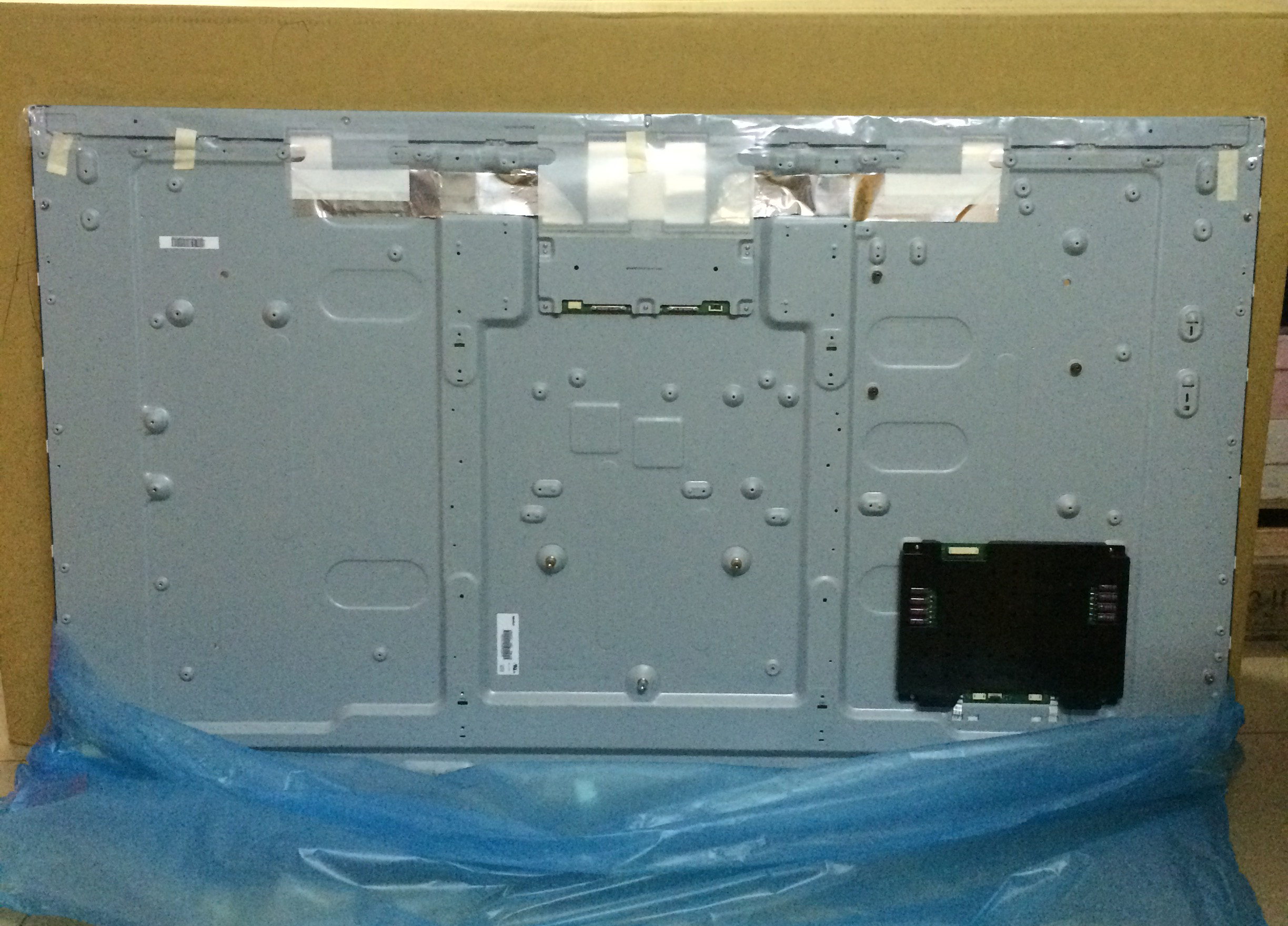

| PartNumber | V580DK1-KS2 Rev.HA |
| Marca | Innolux |
| mărimea | 58 |
| Aplicație | TV Sets |
| Rezoluţie | 3840×2160 |
| Compoziţie | LCM , a-Si TFT-LCD |
| Luminozitate | |
| CR | 3000:1 |
| Culori | 1.07B |
| Iluminare de fundal | WLED |
| Interfață | |
| producător | Innolux |
| marimea ecranului | 58 inch |
| numărul de pixeli | 3840(RGB)×2160 (UHD) 76PPI |
| zona activa (mm) | 1270.08 × 721.44 (H×V) |
| zona rama (mm) | 1275.3 × 726.7 (H×V) |
| luminanţă | 360 (Typ.)(cd/m²) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10) |
| vedere buna la | Symmetry |
| adâncimea culorii | 1.07B 98% DCI-P3 |
| masa | 19.1±0.1Kgs |
| rată de reîmprospătare | 120Hz |
| numele modelului | V580DK1-KS2 Rev.HA |
| tipul de ecran | LCM , a-Si TFT-LCD |
| aranjament | RGB Vertical Stripe |
| contur (mm) | 1290.3 × 744.7 × 28.6 (H×V×D) |
| tratament | Glare (Haze 0%), Hard coating (3H) |
| Raport de contrast | 3000 : 1 (Typ.) (TM) |
| modul de lucru | Super MVA, Normally Black, Transmissive |
| raspuns | 6.5 (Typ.)(G to G) ms |
| lumina de fundal | WLED , 30K hours , With LED Driver |
| folosit pentru | TV Sets |
| touch screen | Without |
| LK580Z3LA13 | SHARP | 58 | 2560×1080 |
| T576DC01 V0 | AUO | 58 | 2560×1080 |
| V580DK1-KS2 | Innolux | 58 | 3840×2160 |
| V580DK1-LS1 | Innolux | 58 | 3840×2160 |
| V580DK2-KS1 | Innolux | 58 | 3840×2160 |
| V580DK2-KS1 Rev.C8 | Innolux | 58 | 3840×2160 |
| V580DK2-LD1 | Innolux | 58 | 3840×2160 |
| V580HJ1-LD6 | Innolux | 58 | 1920×1080 |
| V580HJ1-LE6 | Innolux | 58 | 1920×1080 |
| V580HK1-LE6 | Innolux | 58 | 1920×1080 |
