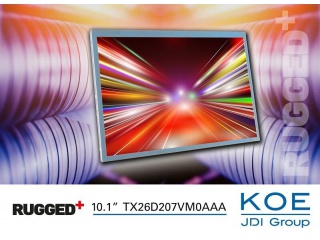

| PartNumber | TX26D207VM0AAA |
| Marca | KOE |
| mărimea | 10.1 |
| Aplicație | Industrial Outdoor H |
| Rezoluţie | 1280×800 |
| Compoziţie | a-Si TFT-LCD , LCM |
| Luminozitate | |
| CR | 1500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca | KOE |
| dimensiunea diagonalei | 10.1 inch |
| format de pixeli | 1280(RGB)×800 [WXGA] 149PPI |
| Zonă activă | 217.344(H)×135.84(V) mm |
| zona rama | 220.344(H)×138.838(V) mm |
| luminanţă | 1000 cd/m² (Typ.) |
| direcția vizualizării | Symmetry |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| culoare suport | 16.7M 65% NTSC |
| greutate | 340g (Typ.) |
| rata de cadre | 60Hz |
| tipul de interfață | LVDS (1 ch, 8-bit) , 20 pins Connector |
| alimentare electrică | 3.3V (Typ.) |
| mediu inconjurator | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| model | TX26D207VM0AAA |
| tip | a-Si TFT-LCD , LCM |
| configurație | RGB Vertical Stripe |
| contur dim. | 231(H)×153.5(V) ×11.07(D) mm |
| tratament | - |
| Raport de contrast | 1500:1 (Typ.) (TM) |
| timp de raspuns | 25 (Max.)(Tr+Tf) |
| mod de operare | IPS, Normally Black, Transmissive |
| sursă de lumină | WLED , 70K hours , With LED Driver |
| proiectat pentru | Industrial Outdoor High Brightness Automotive Display |
| panou tactil | Without |
