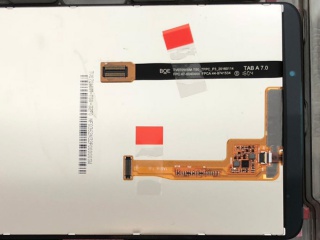

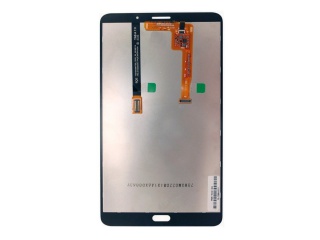

| PartNumber | TV070WXM-TS0 |
| Marca | BOE |
| mărimea | 7.0 |
| Aplicație | Pad & Tablet |
| Rezoluţie | 800×1280 |
| Compoziţie | Assembly , a-Si TF |
| Luminozitate | |
| CR | 900:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | |
| producător | BOE |
| marimea ecranului | 7.0 inch |
| numărul de pixeli | 800(RGB)×1280 (WXGA) 215PPI |
| zona activa (mm) | 94.2 × 150.72 (H×V) |
| zona rama (mm) | - |
| luminanţă | 400 (Typ.)(cd/m²) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10) |
| vedere buna la | Symmetry |
| adâncimea culorii | 16.7M 50% NTSC |
| masa | 74.5g (Typ.) |
| rată de reîmprospătare | 60Hz |
| numele modelului | TV070WXM-TS0 |
| tipul de ecran | Assembly , a-Si TFT-LCD |
| aranjament | RGB Vertical Stripe |
| contur (mm) | 104.557 × 182.85 × 5.18 (H×V×D) |
| tratament | Antiglare (Haze 25%), Hard coating |
| Raport de contrast | 900 : 1 (Typ.) (TM) |
| modul de lucru | - |
| raspuns | 25 (Typ.)(Tr+Td) ms |
| lumina de fundal | WLED , 20K hours , No Driver |
| folosit pentru | Pad & Tablet |
| touch screen | On-Cell Touch |
