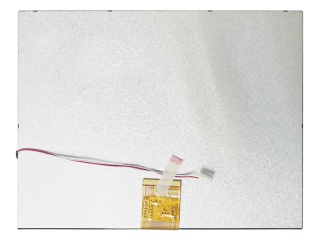

| PartNumber | TM104SDHG30-71 |
| Marca | TIANMA |
| mărimea | 10.4 |
| Aplicație | Industrial Automotiv |
| Rezoluţie | 800×600 |
| Compoziţie | a-Si TFT-LCD, LCM |
| Luminozitate | |
| CR | 500:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | Parallel |
| marca | TIANMA |
| model | TM104SDHG30-71 |
| dimensiunea diagonalei | 10.4 inch |
| tip | a-Si TFT-LCD, LCM |
| format de pixeli | 800(RGB)×600 [SVGA] 96PPI |
| configurație | RGB Vertical Stripe |
| Zonă activă | 211.2(H)×158.4(V) mm |
| contur dim. | 228.4(H)×175.4(V) ×6.5(D) mm |
| zona rama | 214.2(H)×162.5(V) mm |
| tratament | Antiglare, Hard coating (3H) |
| luminanţă | 350 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) (TM) |
| direcția vizualizării | 12 o'clock |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/60/70 (Typ.)(CR≥10) |
| mod de operare | TN, Normally White, Transmissive |
| culoare suport | 262K/16.2M 50% NTSC |
| sursă de lumină | WLED [3S12P] , 30K hours , W/O Driver |
| greutate | 360g |
| proiectat pentru | Industrial Automotive Display |
| rata de cadre | 60Hz |
| panou tactil | Without |
| tipul de interfață | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| alimentare electrică | 3.3/11.0/25.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| mediu inconjurator | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
