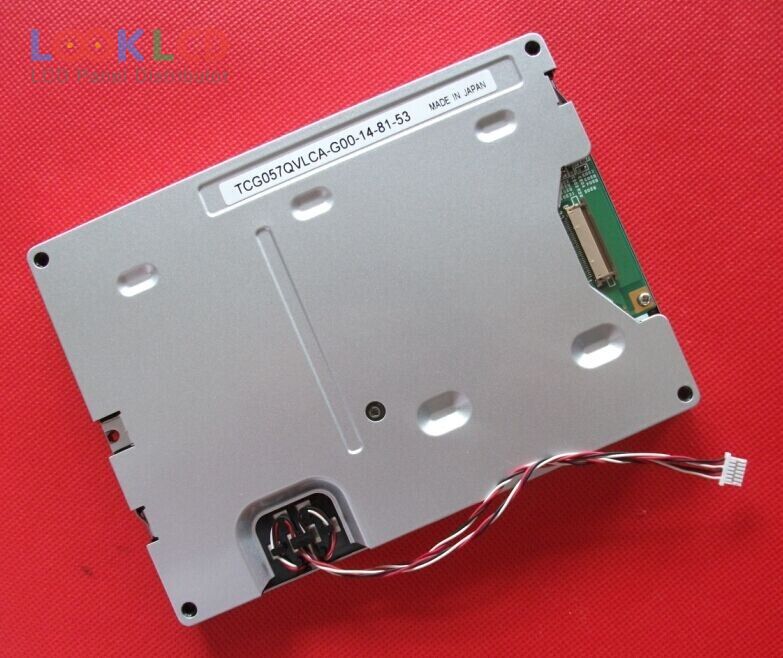

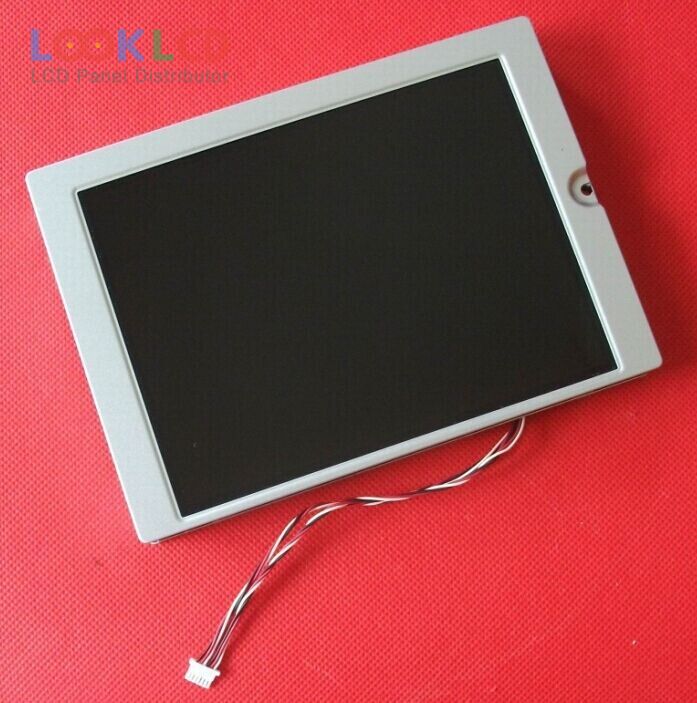

| PartNumber | TCG057QVLCA-G00 |
| Marca | Kyocera |
| mărimea | 5.7 |
| Aplicație | IA |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | Kyocera |
| model de panou | TCG057QVLCA-G00 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.7 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 115.2×86.4 mm |
| contur | 144×104.8×13.5 mm |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 10/25 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| tip lampa | 3 stringsWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 33 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
