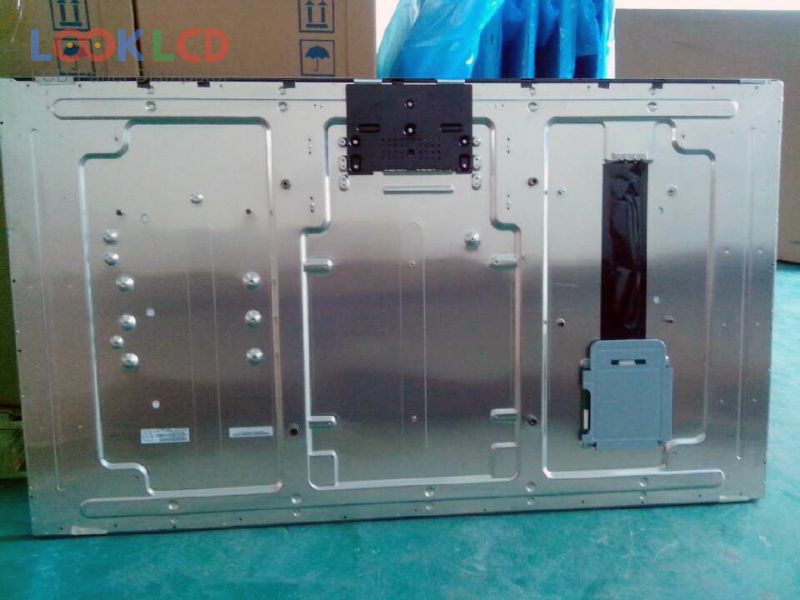

| PartNumber | T546HW04 V3 |
| Marca | AUO |
| mărimea | 55 |
| Aplicație | LCTV |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 380 |
| CR | 4000:1 |
| Culori | 16.7M/1.07B |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | T546HW04 V3 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 55 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | AMVA3, Normally Black, Transmissive |
| Zonă activă | 1209.6×680.4 mm |
| contur | 1255.6×726.4 mm |
| suprafaţă | Antiglare (Haze 2%) |
| luminozitatea | 380 cd/m² (Typ.) |
| Raport de contrast | 4000:1 (Typ.) |
| culorile afișajului | 16.7M/1.07B (8-bit / 8-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 5.5 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 120Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (4 ch, 8/10-bit), 92 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
| BRS550H2 | BERISE | 55 | 1920×1080 |
| LC550DUN-SFU2 | LG Display | 55 | 1920×1080 |
| LC550EQN-PGF1 | LG Display | 55 | 3840×2160 |
| LTA550HW04 | Samsung | 55 | 1920×1080 |
| LTI550HN03 | Samsung | 55 | 1920×1080 |
| T546HB01 V0 | AUO | 55 | 1920×1080 |
| T546HW01 V0 | AUO | 55 | 1920×1080 |
| T546HW01 V1 | AUO | 55 | 1920×1080 |
| T546HW02 V1 | AUO | 55 | 1920×1080 |
| T546HW04 V3 | AUO | 55 | 1920×1080 |
| CLAA370WA03 | CPT | 37 | 1366×768 |
| LC230WX3-SLA1 | LG Display | 23.0 | 1366×768 |
| LC370EUN-SEF2 | LG Display | 36.5 | 1920×1080 |
| LC420EUE-SEM2 | LG Display | 42 | 1920×1080 |
| LC490DUY-SHA2 | LG Display | 49 | 1920×1080 |
| LTA460HF03-T02 | Samsung | 46 | 1920×1080 |
| T200XW02 V0 | AUO | 20.0 | 1366×768 |
| T315HW05 V5 | AUO | 31.5 | 1920×1080 |
| T420HW07 V4 | AUO | 42 | 1920×1080 |
| T520HW01 V5 | AUO | 52 | 1920×1080 |
