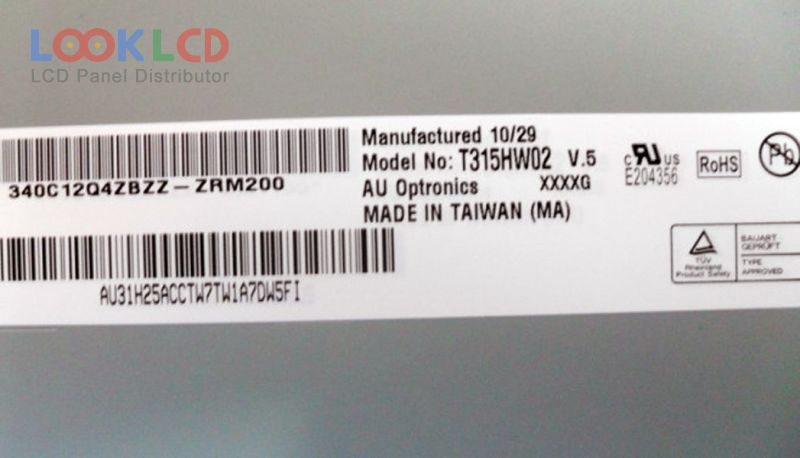

| PartNumber | T315HW02 V5 |
| Marca | AUO |
| mărimea | 31.5 |
| Aplicație | LCTV |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 4000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | T315HW02 V5 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 31.5 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | AMVA3, Normally Black, Transmissive |
| Zonă activă | 698.4×392.85 mm |
| contur | 760×450 mm |
| suprafaţă | Antiglare (Haze 11%), Hard coating (3H) |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 4000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 6.5 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 120Hz |
| tip lampa | CCFLEmbedded (Inverter) |
| interfață de semnal | LVDS (4 ch, 10-bit), 92 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
| T315HB01 V1 | AUO | 31.5 | 1920×1080 |
| T315HW02 V5 | AUO | 31.5 | 1920×1080 |
| T315HW02 VB | AUO | 31.5 | 1920×1080 |
| T315HW04 V4 | AUO | 31.5 | 1920×1080 |
| T315HW04 V9 | AUO | 31.5 | 1920×1080 |
| T315HW05 V0 | AUO | 31.5 | 1920×1080 |
| T315HW05 V3 | AUO | 31.5 | 1920×1080 |
| T315HW05 V5 | AUO | 31.5 | 1920×1080 |
| T315HW07 V1 | AUO | 31.5 | 1920×1080 |
| T315HW07 V6 | AUO | 31.5 | 1920×1080 |
| LC320WXN-SAB1 | LG Display | 31.5 | 1366×768 |
| LC420WUN-SCA1 | LG Display | 42 | 1920×1080 |
| LC546PU1L01 | PANDA | 55 | 3840×2160 |
| LC650EQF-FGF1 | LG Display | 65 | 3840×2160 |
| T315HW05 V5 | AUO | 31.5 | 1920×1080 |
| V201B1-L02 | Innolux | 20.1 | 1366×768 |
| V216B1-L01 | Innolux | 21.6 | 1366×768 |
| V320B1-L06 | Innolux | 32.0 | 1366×768 |
| V460H1-LE3 | Innolux | 46 | 1920×1080 |
| V580DK1-QS2 | Innolux | 58 | 3840×2160 |
