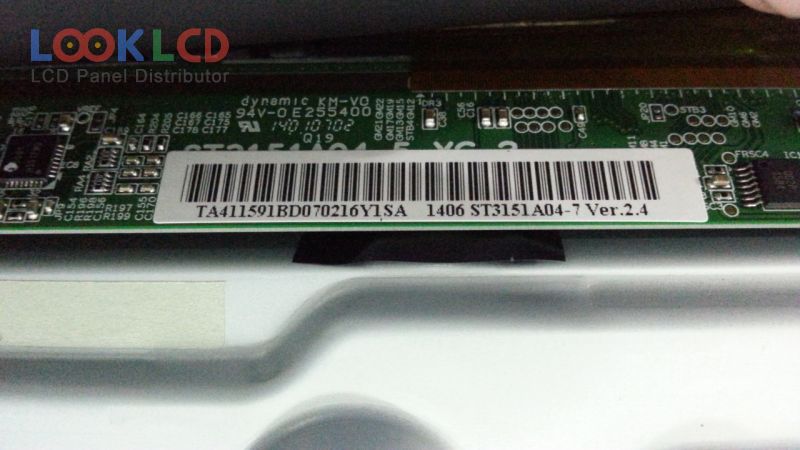

| PartNumber | ST3151A04-7 |
| Marca | CSOT |
| mărimea | 31.5 |
| Aplicație | LCTV |
| Rezoluţie | 1366×768 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 4000:1 |
| Culori | 16.7M |
| Iluminare de fundal | No B/L |
| Interfață | LVDS |
| marca panoului | CSOT |
| model de panou | ST3151A04-7 |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 31.5 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | HVA, Normally Black, Transmissive |
| Zonă activă | 697.685×392.256 mm |
| contur | 714.835×410.57 mm |
| suprafaţă | Antiglare (Haze 2%), Hard coating (3H) |
| adâncimea sticlei | 0.50+0.50 mm |
| transmisivitatea | 6.5% (Typ.)(with Polarizer) |
| Raport de contrast | 4000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 6.5 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | LVDS (1 ch, 8-bit), 30 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
