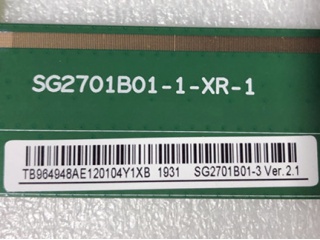

| PartNumber | SG2701B01-3 |
| Marca | CSOT |
| mărimea | 27.0 |
| Aplicație | Desktop Monitor Gami |
| Rezoluţie | 1920×1080 |
| Compoziţie | a-Si TFT-LCD, CELL |
| Luminozitate | |
| CR | 4000:1 |
| Culori | 16.7M |
| Iluminare de fundal | No |
| Interfață | LVDS |
| marca | CSOT |
| model | SG2701B01-3 |
| dimensiunea diagonalei | 27.0 inch |
| tip | a-Si TFT-LCD, CELL |
| format de pixeli | 1920(RGB)×1080 [FHD] 81PPI |
| configurație | RGB Vertical Stripe |
| Zonă activă | 597.888(H)×336.312(V) mm |
| contur dim. | 608.888(H)×348.337(V) ×1.3(D) mm |
| zona rama | - |
| tratament | Antiglare (Haze 25%) |
| luminanţă | 0 cd/m² |
| Raport de contrast | 4000:1 (Typ.) (TM) |
| direcția vizualizării | Symmetry |
| timp de raspuns | 12 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10) |
| mod de operare | HVA, Normally Black, Transmissive |
| grosimea farfuriei | 0.40+0.50 mm |
| transmitanța | 4.6% (Typ.)(with Polarizer) |
| culoare suport | 16.7M 99% sRGB |
| sursă de lumină | No B/L |
| greutate | - |
| proiectat pentru | Desktop Monitor Gaming |
| rata de cadre | 165Hz |
| panou tactil | Without |
| detaliu d-ic | COF Built-in 6 source chips |
| tipul de interfață | LVDS (4 ch, 8-bit) , 61 pins Connector |
| alimentare electrică | 12.0V (Typ.) |
| mediu inconjurator | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
