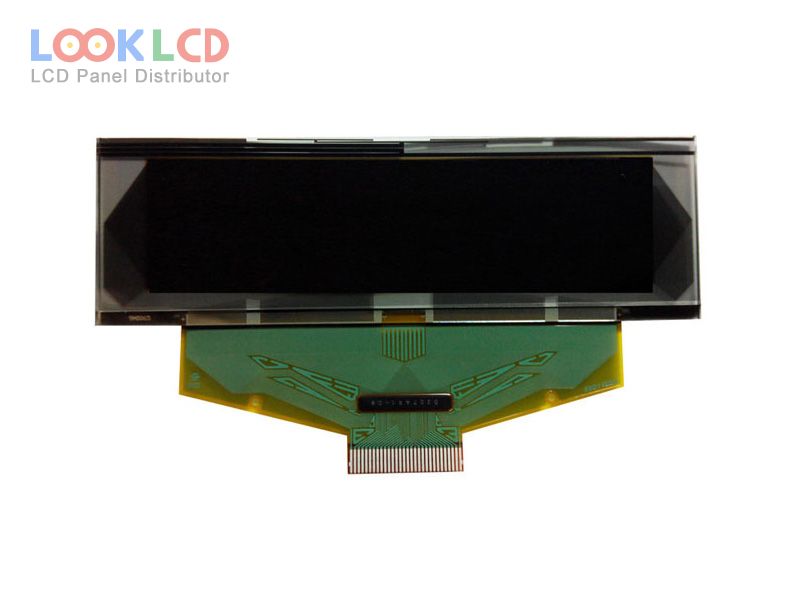

| PartNumber | OEL9M0065-B-E |
| Marca | Other |
| mărimea | 2.7 |
| Aplicație | IA |
| Rezoluţie | 256×64 |
| Compoziţie | OLED |
| Luminozitate | |
| CR | 10000:1 |
| Culori | Grayscale(B) |
| Iluminare de fundal | self |
| Interfață | CPU/SPI |
| marca panoului | TRULY |
| model de panou | OEL9M0065-B-E |
| tip panou | PM-OLED , OLED |
| dimensiunea panoului | 2.7 inch |
| rezoluţie | 256×64 |
| Zonă activă | 66.53×16.61 mm |
| contur | 82×25.5×1.6 mm |
| suprafaţă | |
| luminozitatea | |
| Raport de contrast | 10000 : 1 (Min.) |
| culorile afișajului | Grayscale(B) (4-bit) |
| unghi de vedere | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 100Hz |
| driver ic | COF Built-in SSD1322UR1 |
| interfață de semnal | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| aplicarea | IA |
