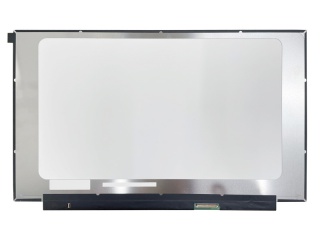

| PartNumber | NV156FHM-NX5 |
| Marca | BOE |
| mărimea | 15.6 |
| Aplicație | Laptop Gaming |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM , a-Si TFT-LCD |
| Luminozitate | |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | 11S4P |
| Interfață | eDP |
| producător | BOE |
| marimea ecranului | 15.6 inch |
| numărul de pixeli | 1920(RGB)×1080 (FHD) 141PPI |
| zona activa (mm) | 344.16 × 193.59 (H×V) |
| zona rama (mm) | - |
| luminanţă | 250 cd/m² (Typ.) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| vedere buna la | Symmetry |
| adâncimea culorii | 16.7M 45% NTSC |
| forma conturului | Slim (PCBA Flat, T≤3.2mm) |
| rată de reîmprospătare | 144Hz |
| tipul semnalului | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| alimentare cu tensiune | 3.3V (Typ.) |
| max. evaluări | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| numele modelului | NV156FHM-NX5 (BOE08EA,BOE094D) |
| tipul de ecran | LCM , a-Si TFT-LCD |
| aranjament | RGB Vertical Stripe |
| contur (mm) | 350.66 × 216.245 × 3.2 (H×V×D) |
| tratament | Antiglare, Hard coating (3H) |
| Raport de contrast | 800 : 1 (Typ.) (TM) |
| raspuns | 20 (Typ.)(Tr+Td) ms |
| modul de lucru | ADS, Normally Black, Transmissive |
| lumina de fundal | 11S4P WLED , 15K hours , With LED Driver |
| folosit pentru | Laptop Gaming |
| touch screen | Without |
