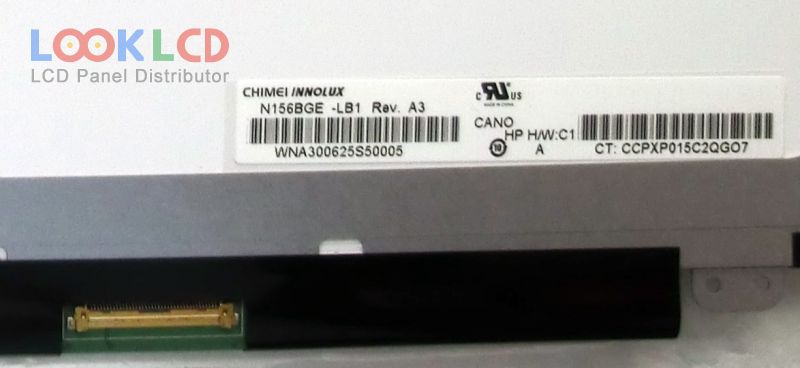

| PartNumber | N156BGE-LB1 |
| Marca | Innolux |
| mărimea | 15.6 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | N156BGE-LB1 5 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 344.232×193.536 mm |
| contur | 359.5×223.8×3.2 mm |
| stilul formei | Slim (PCBA Flat, Depth ≤3.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 3/8 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 11S3PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| N156B3-L02 | Innolux | 15.6 | 1366×768 |
| N156B6-L01 | Innolux | 15.6 | 1366×768 |
| N156B6-L0B | Innolux | 15.6 | 1366×768 |
| N156B6-L3D | Innolux | 15.6 | 1366×768 |
| N156BGE-E11 | Innolux | 15.6 | 1366×768 |
| N156BGE-E41 | Innolux | 15.6 | 1366×768 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
| N156BGE-L11 | Innolux | 15.6 | 1366×768 |
| N156BGE-L62 | Innolux | 15.6 | 1366×768 |
| N156BGE-LB1 | Innolux | 15.6 | 1366×768 |
| B156HW01 V4 | AUO | 15.6 | 1920×1080 |
| B156XTN02.0 | AUO | 15.6 | 1366×768 |
| B156XTN02.4 | AUO | 15.6 | 1366×768 |
| LTN140AT21-801 | Samsung | 14.0 | 1366×768 |
| LTN141AT05-G03 | Samsung | 14.1 | 1280×800 |
| LTN141BT04-001 | Samsung | 14.1 | 1440×900 |
| LTN160AT06-B01 | Samsung | 16.0 | 1366×768 |
| LTN173HT02-X01 | Samsung | 17.3 | 1920×1080 |
| N133B6-L01 | Innolux | 13.3 | 1366×768 |
| NL6448AC33-10 | NLT | 10.4 | 640×480 |
