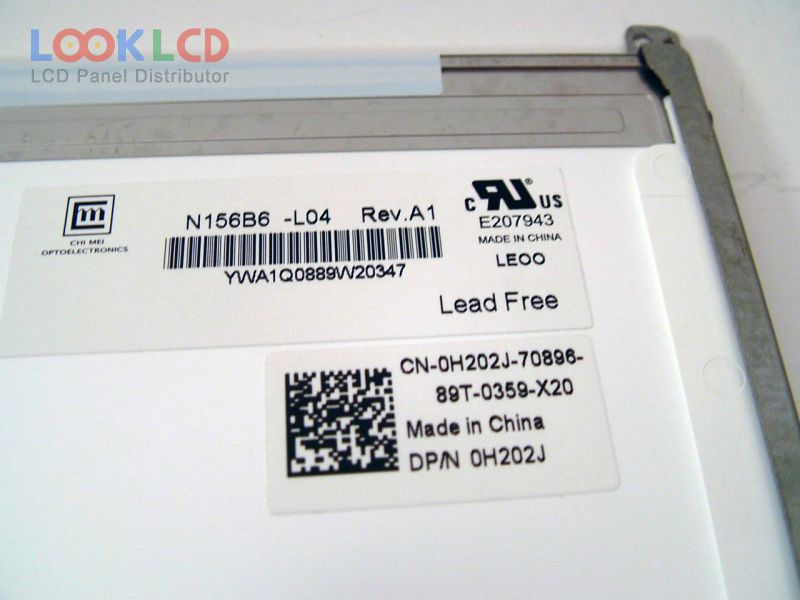

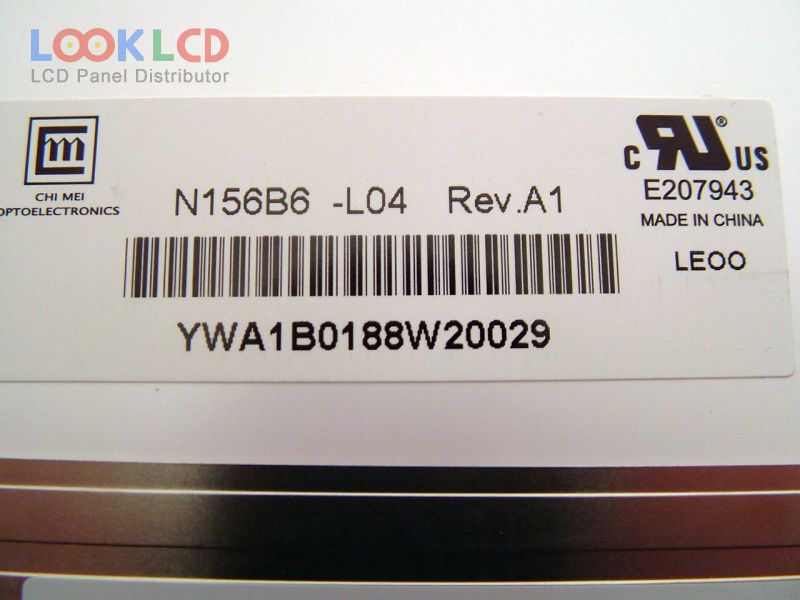

| PartNumber | N156B6-L04 |
| Marca | Innolux |
| mărimea | 15.6 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 220 |
| CR | 650:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CMO |
| model de panou | N156B6-L04 61 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 344.232×193.536 mm |
| contur | 359.3×209.5×5.5 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 220 cd/m² (Typ.) |
| Raport de contrast | 650:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 3/5 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 9S6PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| N156B3-L01 | Innolux | 15.6 | 1366×768 |
| N156B6-L01 | Innolux | 15.6 | 1366×768 |
| N156B6-L06 | Innolux | 15.6 | 1366×768 |
| N156BGE-E21 | Innolux | 15.6 | 1366×768 |
| N156BGE-E41 | Innolux | 15.6 | 1366×768 |
| N156BGE-E42 | Innolux | 15.6 | 1366×768 |
| N156BGE-L21 | Innolux | 15.6 | 1366×768 |
| N156BGE-L51 | Innolux | 15.6 | 1366×768 |
| N156BGE-L52 | Innolux | 15.6 | 1366×768 |
| N156BGE-L62 | Innolux | 15.6 | 1366×768 |
| B140RW01 V2 | AUO | 14.0 | 1600×900 |
| BT140GW02 V.0 | Innolux | 14.0 | 1366×768 |
| LP133WX2-TLAA | LG Display | 13.3 | 1280×800 |
| LP156WF3-SLB2 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LTD121EWEK | TOSHIBA | 12.1 | 1280×800 |
| LTN141AT12-C01 | Samsung | 14.1 | 1280×800 |
| LTN141X7-L06 | Samsung | 14.1 | 1024×768 |
| LTN150XG-L08 | Samsung | 15.0 | 1024×768 |
| N150X3-L09 | Innolux | 15.0 | 1024×768 |
