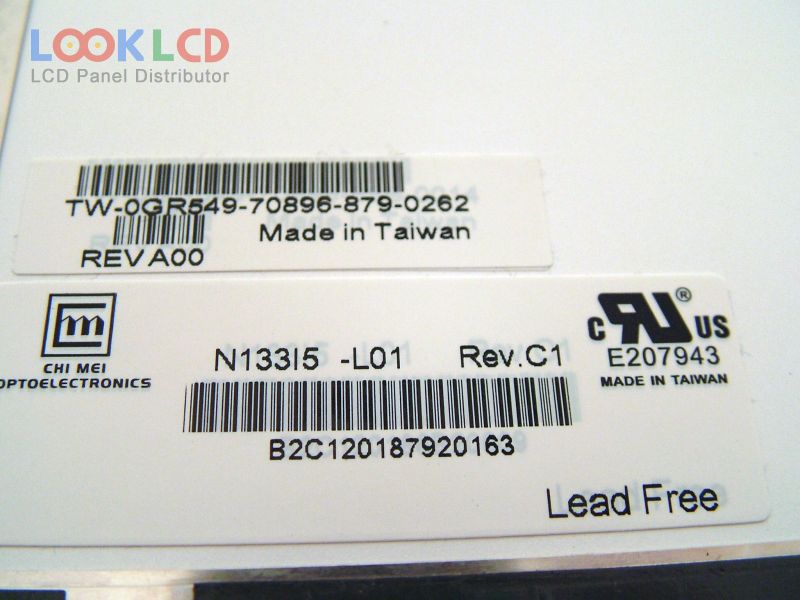

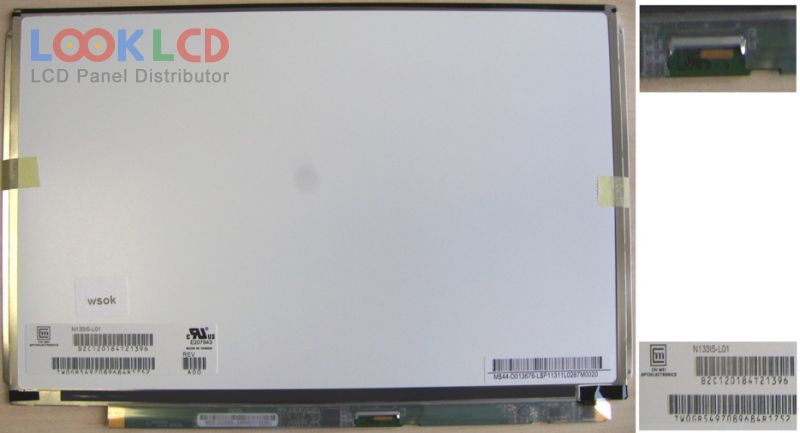

| PartNumber | N133I5-L01 |
| Marca | Innolux |
| mărimea | 13.3 |
| Aplicație | NBPC |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CMO |
| model de panou | N133I5-L01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 13.3 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 286.08×178.8 mm |
| contur | 304×202.5×3.67 mm |
| stilul formei | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 6/14 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8S6PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| L141X1-1 | AUO | 14.1 | 1024×768 |
| LTD121EWEK | TOSHIBA | 12.1 | 1280×800 |
| LTN121AT01-001 | Samsung | 12.1 | 1280×800 |
| LTN121XJ-L05 | Samsung | 12.1 | 1024×768 |
| LTN140AT20-W05 | Samsung | 14.0 | 1366×768 |
| LTN156AT02-A11 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D02 | Samsung | 15.6 | 1366×768 |
| LTN170WX-L06 | Samsung | 17.0 | 1440×900 |
| M140NWR4 R2 | IVO | 14.0 | 1366×768 |
| N154I4-L03 | Innolux | 15.4 | 1280×800 |
