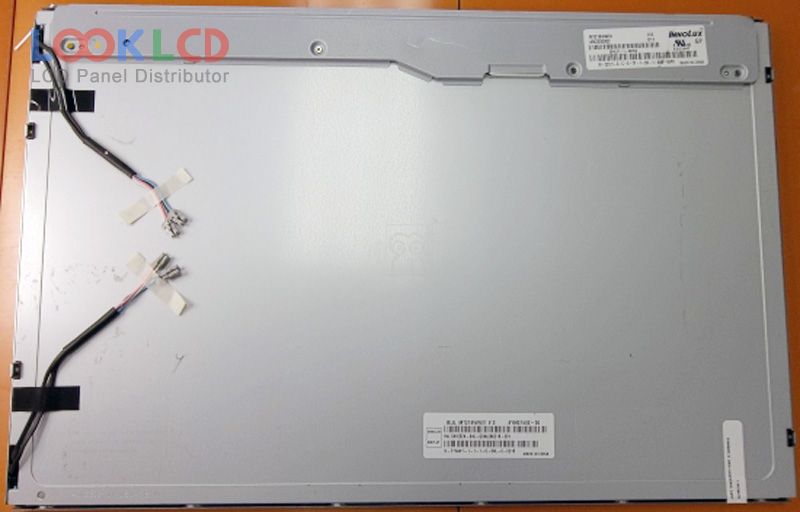

| PartNumber | MT216WW01 V.0 |
| Marca | Innolux |
| mărimea | 21.6 |
| Aplicație | DMPC |
| Rezoluţie | 1680×1050 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | MT216WW01 V.0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 21.6 inch |
| rezoluţie | 1680(RGB)×1050 , WSXGA+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 464.94×290.587 mm |
| contur | 493.7×320.1 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 5 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR＞10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| LC216EXN-SDA1 | LG Display | 21.6 | 1366×768 |
| LC216EXN-SFA1 | LG Display | 21.6 | 1366×768 |
| LC220WXE-TBA1 | LG Display | 21.6 | 1366×768 |
| LTA216AT01 | Samsung | 21.6 | 1366×768 |
| M216H1-L01 | Innolux | 21.6 | 1920×1080 |
| MT216WW01 V.0 | Innolux | 21.6 | 1680×1050 |
| T216XW01 V1 | AUO | 21.6 | 1366×768 |
| T216XW01 V3 | AUO | 21.6 | 1366×768 |
| V216B1-L01 | Innolux | 21.6 | 1366×768 |
| V216BG1-LE1 | Innolux | 21.6 | 1366×768 |
| CLAA170EA07Q | CPT | 17.0 | 1280×1024 |
| LM150X06-A3M2 | LG Display | 15.0 | 1024×768 |
| LM220WE1-TLM1 | LG Display | 22.0 | 1680×1050 |
| LM230WF3-S2E4 | LG Display | 23.0 | 1920×1080 |
| LM240WU7-SLB1 | LG Display | 24.0 | 1920×1200 |
| LM270WF4-TLA1 | LG Display | 27.0 | 1920×1080 |
| M185XW01 V6 | AUO | 18.5 | 1366×768 |
| M190MWW4 R2 | IVO | 19.0 | 1440×900 |
| M240UW04 V0 | AUO | 24.0 | 1920×1200 |
| MT220WW01 V.5 | Innolux | 22.0 | 1680×1050 |
