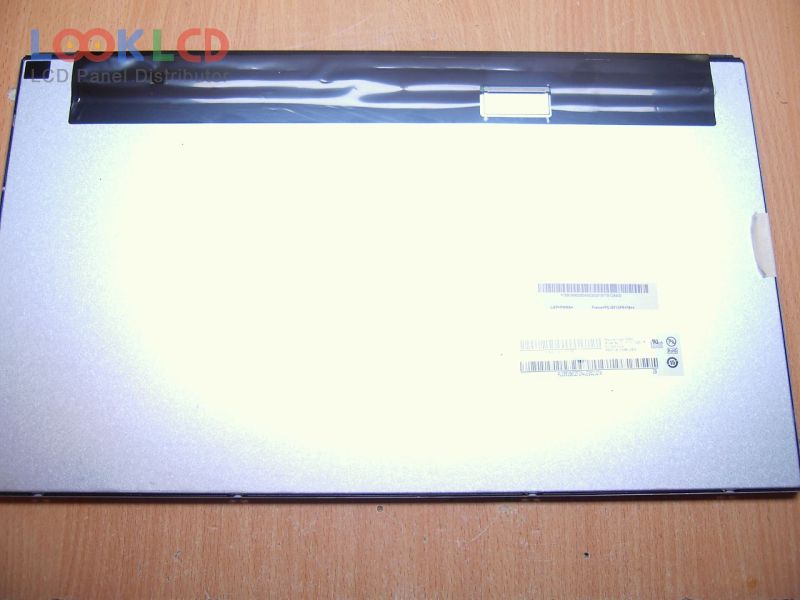

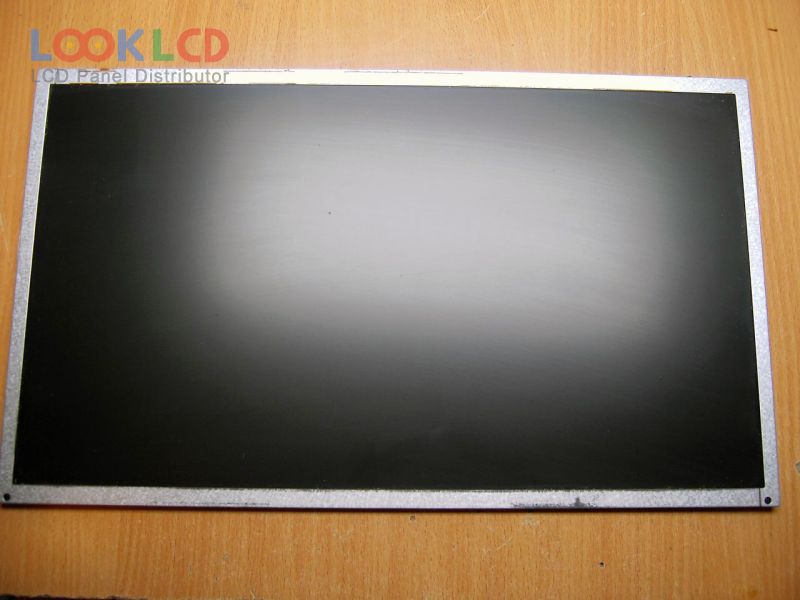

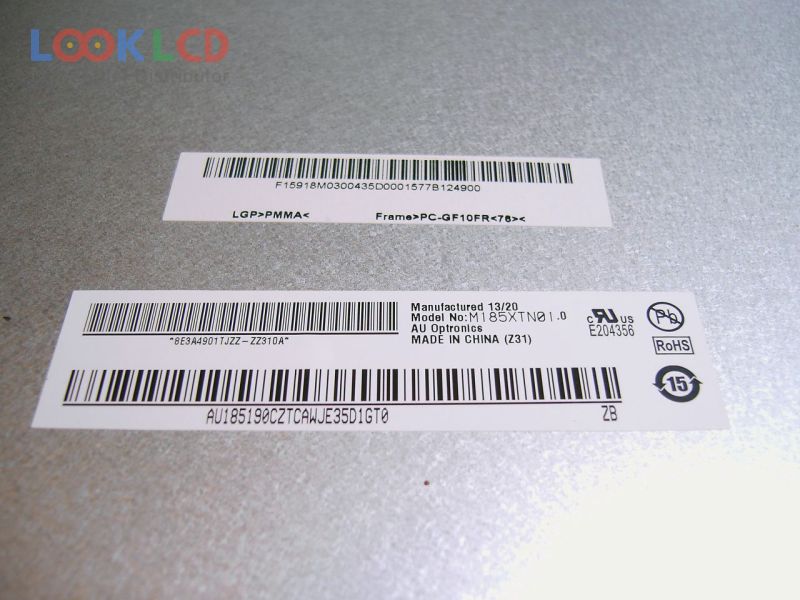

| PartNumber | M185XTN01.0 |
| Marca | AUO |
| mărimea | 18.5 |
| Aplicație | DMPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 700:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | M185XTN01.0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 18.5 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 409.8×230.4 mm |
| contur | 430.4×254.6×10.3 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 3.6/1.4 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 10S4PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| M185XTN01.2 | AUO | 18.5 | 1366×768 |
| M185XTN01.3 | AUO | 18.5 | 1366×768 |
| M185XW01 V1 | AUO | 18.5 | 1366×768 |
| M185XW01 V2 | AUO | 18.5 | 1366×768 |
| M185XW01 V3 | AUO | 18.5 | 1366×768 |
| M185XW01 V4 | AUO | 18.5 | 1366×768 |
| M185XW01 V5 | AUO | 18.5 | 1366×768 |
| M185XW01 V6 | AUO | 18.5 | 1366×768 |
| M185XW01 V8 | AUO | 18.5 | 1366×768 |
| M185XW01 VH | AUO | 18.5 | 1366×768 |
| HSD190MEN3-A01 | HannStar | 19.0 | 1280×1024 |
| HT170E01-300 | BOE | 17.0 | 1280×1024 |
| LM190E05-SL03 | LG Display | 19.0 | 1280×1024 |
| LM190E09-TLB1 | LG Display | 19.0 | 1280×1024 |
| LM220W1-A2MN | LG Display | 22.0 | 1600×1024 |
| LM238WQ1-SLA1 | LG Display | 23.8 | 2560×1440 |
| LTM190E1-L03 | Samsung | 19.0 | 1280×1024 |
| LTM220M1-L02(Glare) | Samsung | 22.0 | 1680×1050 |
| M170EG01 VA | AUO | 17.0 | 1280×1024 |
| M201EW02 V6 | AUO | 20.1 | 1680×1050 |
