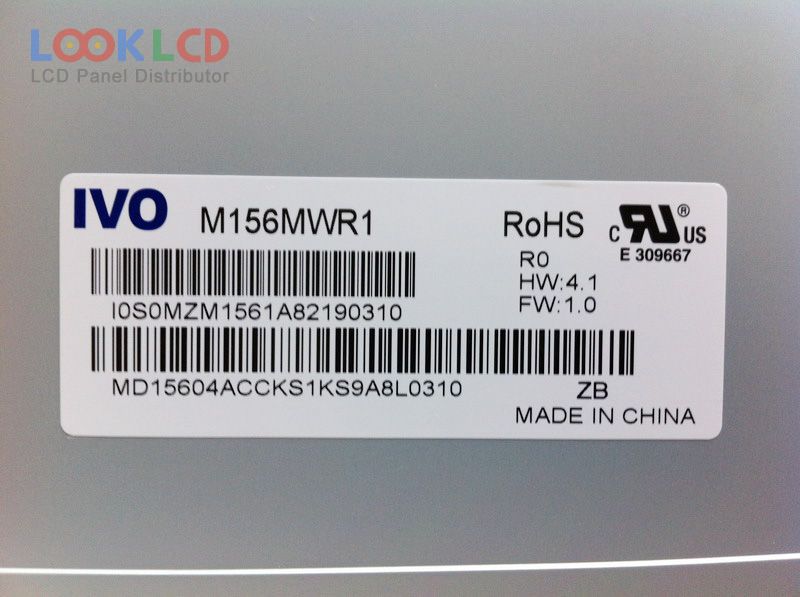

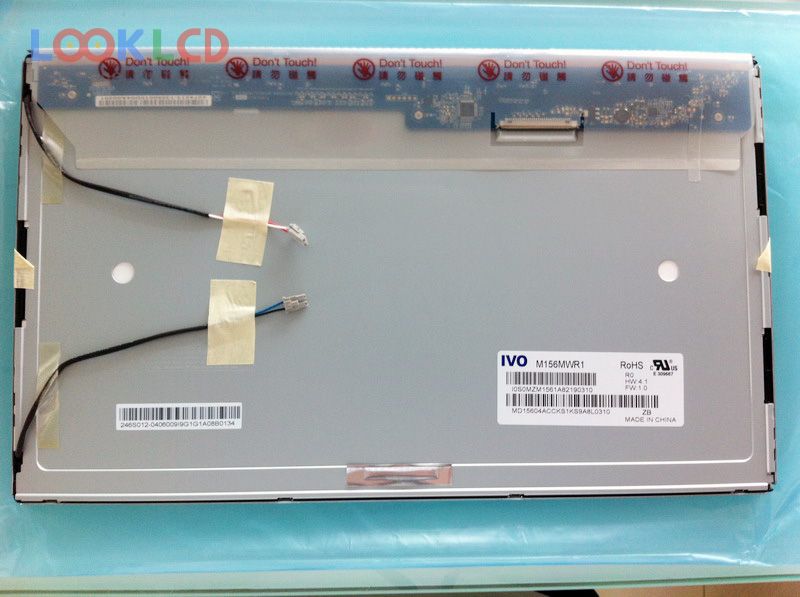

| PartNumber | M156MWR1 R0 |
| Marca | IVO |
| mărimea | 15.6 |
| Aplicație | DMPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | IVO |
| model de panou | M156MWR1 R0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 344.232×193.536 mm |

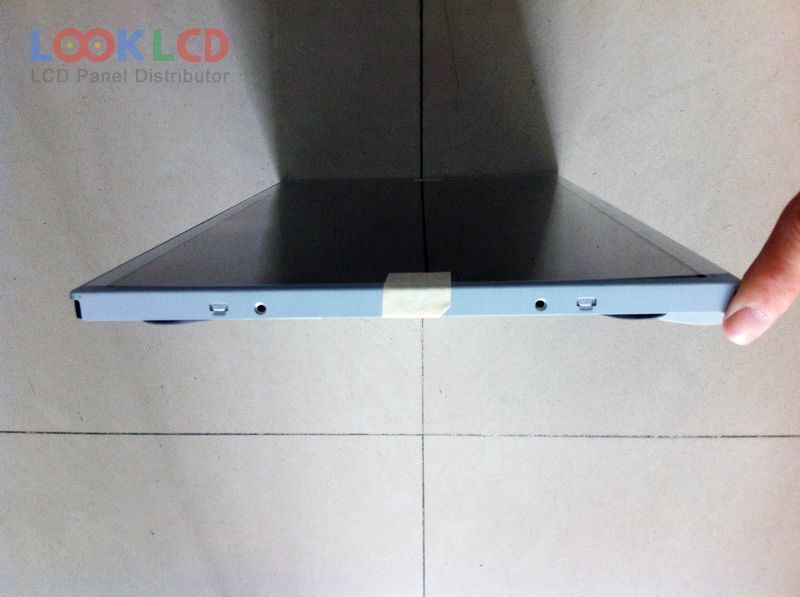

| contur | 363.8×215.9×14.8 mm |
| suprafaţă | |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC) |
| timp de raspuns | 8 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| B156HW01 V1 | AUO | 15.6 | 1920×1080 |
| B156HW01 V7 | AUO | 15.6 | 1920×1080 |
| LP156WF1-TLB1 | LG Display | 15.6 | 1920×1080 |
| LTN156AT01-U01 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-H07 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-L01 | Samsung | 15.6 | 1366×768 |
| LTN156AT34-D01 | Samsung | 15.6 | 1366×768 |
| LTN156KT01-003 | Samsung | 15.6 | 1600×900 |
| LTN156KT06-801 | Samsung | 15.6 | 1600×900 |
| M156MWR1 R0 | IVO | 15.6 | 1366×768 |
| LM171WX3-TLC1 | LG Display | 17.1 | 1440×900 |
| LM201U05-SLA1 | LG Display | 20.1 | 1600×1200 |
| LM220WE1-TLB3 | LG Display | 22.0 | 1680×1050 |
| LM270WF4-TLA1 | LG Display | 27.0 | 1920×1080 |
| LM270WQ1-SDE3 | LG Display | 27.0 | 2560×1440 |
| LQ150X1DG10 | SHARP | 15.0 | 1024×768 |
| LTM170EU-L01 | Samsung | 17.0 | 1280×1024 |
| LTM200KT08-V | Samsung | 20.0 | 1600×900 |
| LTM240CT01 | Samsung | 24.0 | 1920×1200 |
| M190A1-L0A | Innolux | 19.0 | 1440×900 |
