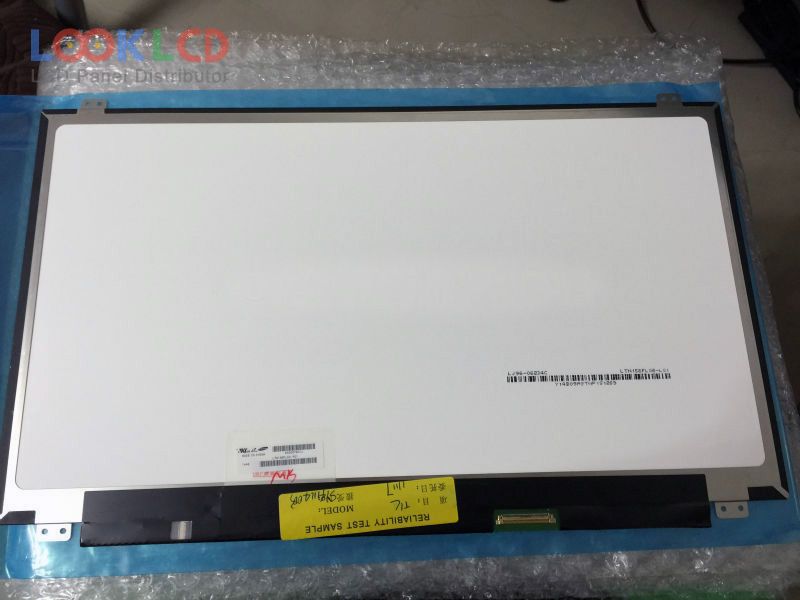

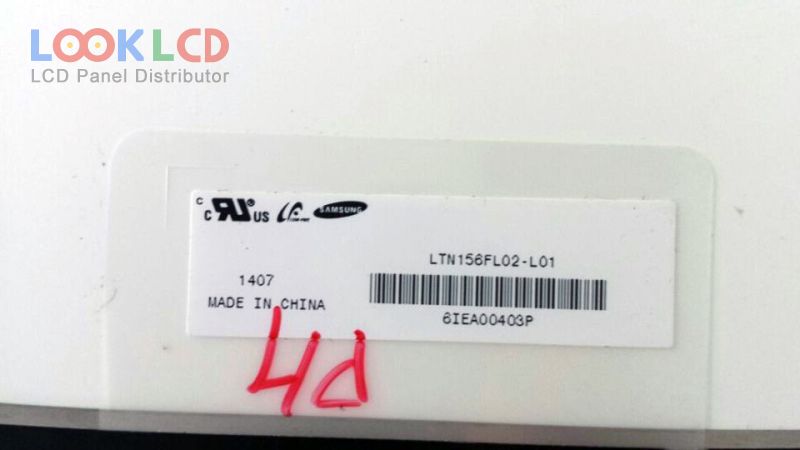

| PartNumber | LTN156FL02-L01 |
| Marca | Samsung |
| mărimea | 15.6 |
| Aplicație | NBPC |
| Rezoluţie | 3840×2160 |
| Compoziţie | LCM |
| Luminozitate | 270 |
| CR | 700:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | SAMSUNG |
| model de panou | LTN156FL02-L01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 3840RG(BW)×2160 , UHD |
| modul de afișare | PLS, Normally Black, Transmissive |
| Zonă activă | 344.448×193.752 mm |
| contur | 359.5×223.8×3 mm |
| stilul formei | Slim (PCBA Flat, Depth ≤3.2mm) |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 270 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR＞10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4S10PWLEDEmbedded (LED Driver) |

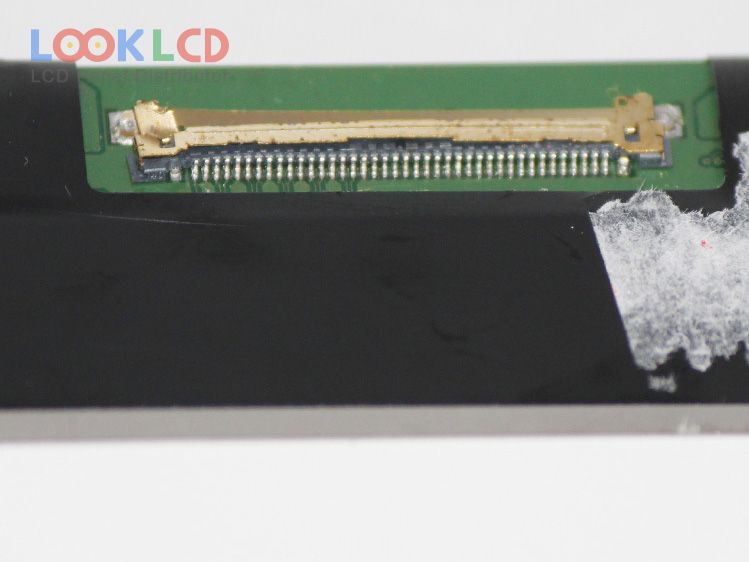

| interfață de semnal | eDP (4 Lanes), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
