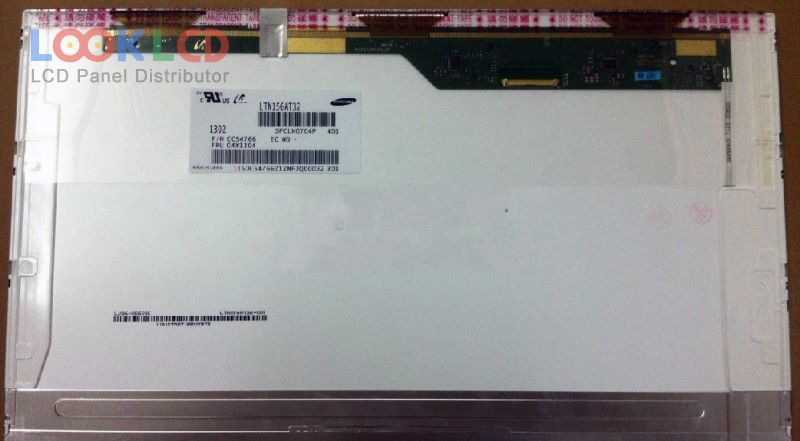

| PartNumber | LTN156AT32-401 |
| Marca | Samsung |
| mărimea | 15.6 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 220 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTN156AT32-401 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 344.232×193.536 mm |
| contur | 359.3×209.5×5.5 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 220 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193160% |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4S1PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| LTN156AT01-B01 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-H01 | Samsung | 15.6 | 1366×768 |
| LTN156AT02 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-H07 | Samsung | 15.6 | 1366×768 |
| LTN156AT15-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT19-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT23-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-W02 | Samsung | 15.6 | 1366×768 |
| LTN156AT34-D01 | Samsung | 15.6 | 1366×768 |
| B125HAN01.0 | AUO | 12.5 | 1920×1080 |
| LP125WH2-TLD1 | LG Display | 12.5 | 1366×768 |
| LP141WX5-TLC1 | LG Display | 14.1 | 1280×800 |
| LP154WP4-TLA1 | LG Display | 15.4 | 1440×900 |
| LQ156Z1JW03 | SHARP | 15.6 | 3200×1800 |
| LTD121EA3KZ | TOSHIBA | 12.1 | 1024×768 |
| LTM08C356F | TOSHIBA | 8.4 | 800×600 |
| LTN141AT16-003 | Samsung | 14.1 | 1280×800 |
| LTN156KT01-003 | Samsung | 15.6 | 1600×900 |
| LTN173KT01-W01 | Samsung | 17.3 | 1600×900 |
