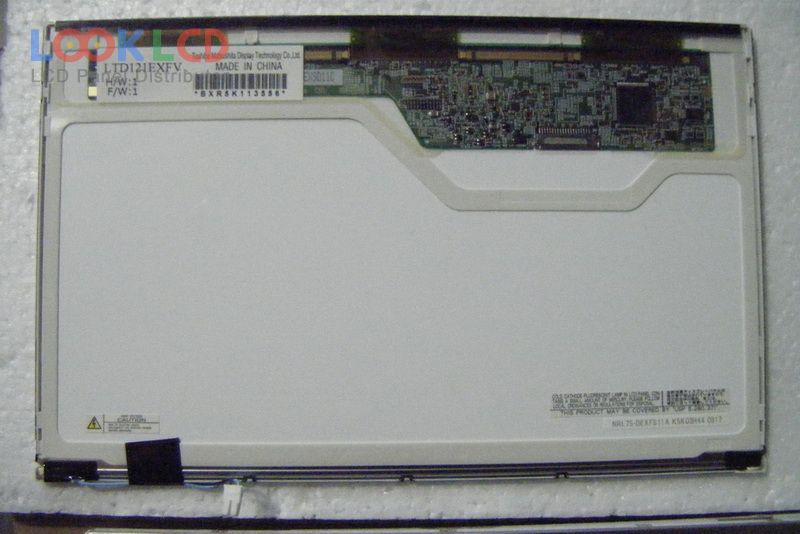

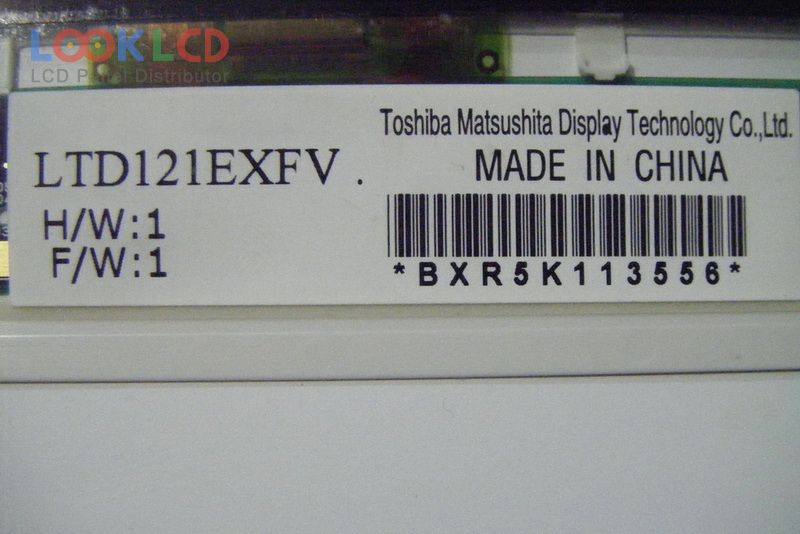

| PartNumber | LTD121EXFV |
| Marca | TOSHIBA |
| mărimea | 12.1 |
| Aplicație | NBPC |
| Rezoluţie | 1280×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | Toshiba Matsushita |
| model de panou | LTD121EXFV 1 Compatible model |
| tip panou | LTPS TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 1280(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 263.04×157.824 mm |
| contur | 275×173.5×5.2 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (2H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 50 (Max.)(Tr+Td) |
| unghi de vedere | 30/30/10/20 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| rohs: | |
| aplicarea | NBPC |
| LTD121C30S | TOSHIBA | 12.1 | 800×600 |
| LTD121C32S | TOSHIBA | 12.1 | 800×600 |
| LTD121EA4XY | TOSHIBA | 12.1 | 1024×768 |
| LTD121EC5S | TOSHIBA | 12.1 | 1024×768 |
| LTD121EXFV | TOSHIBA | 12.1 | 1280×768 |
| LTD121EXPV | TOSHIBA | 12.1 | 1280×800 |
| LTD121EXSF | TOSHIBA | 12.1 | 1280×800 |
| LTD121KM7K | TOSHIBA | 12.1 | 1400×1050 |
| LTD121KX5V | TOSHIBA | 12.1 | 1280×800 |
| LTD121LA3SG-201 | TOSHIBA | 12.1 | 1024×768 |
| B133XW07 V0 | AUO | 13.3 | 1366×768 |
| B156XW01 V0 | AUO | 15.6 | 1366×768 |
| LP140WH4-TLP1 | LG Display | 14.0 | 1366×768 |
| LP141WX5-TLA1 | LG Display | 14.1 | 1280×800 |
| LT121DEE3P00 | TOSHIBA | 12.1 | 1024×768 |
| LTN133AT05-001 | Samsung | 13.3 | 1280×800 |
| LTN156AT02-D04 | Samsung | 15.6 | 1366×768 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
| N156BGE-L41 | Innolux | 15.6 | 1366×768 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
