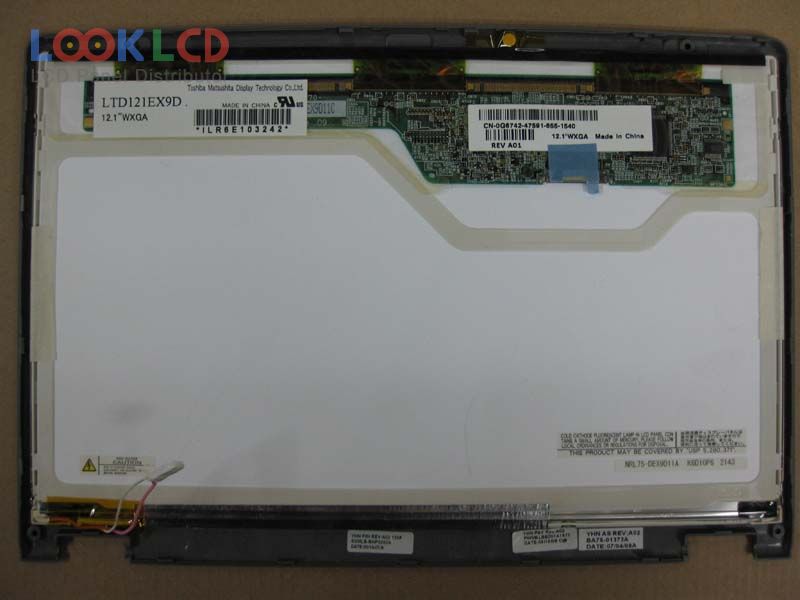

| PartNumber | LTD121EX9D |
| Marca | TOSHIBA |
| mărimea | 12.1 |
| Aplicație | NBPC |
| Rezoluţie | 1280×768 |
| Compoziţie | LCM |
| Luminozitate | 220 |
| CR | 300:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | Toshiba Matsushita |
| model de panou | LTD121EX9D |
| tip panou | LTPS TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 1280(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 263.04×157.824 mm |
| contur | 275×173.5×5.2 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 220 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 50/50 (Max.)(Tr/Td) |
| unghi de vedere | 30/30/10/20 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
