| PartNumber | LTA400HM23 |
| Marca | Samsung |
| mărimea | 40 |
| Aplicație | LCTV |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 5000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTA400HM23 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 40 inch |
| rezoluţie | 1920×1080(RGB) , FHD |
| modul de afișare | S-PVA, Normally Black, Transmissive |
| Zonă activă | 885.6×498.15 mm |
| contur | 914.4×530.6 mm |
| suprafaţă | Antiglare (Haze 5.5%), Hard coating (2H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 5000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193170% |
| timp de raspuns | 8 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |

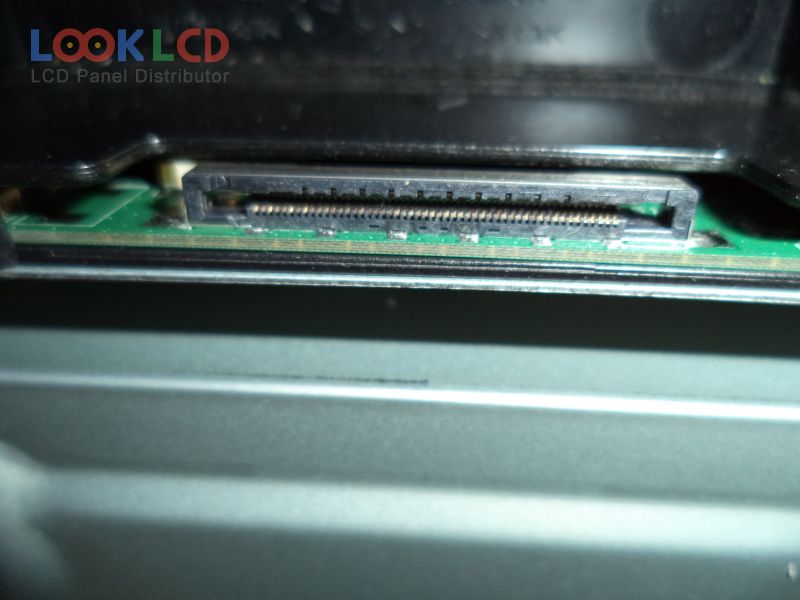

| interfață de semnal | LVDS (2 ch, 8-bit), 51 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
