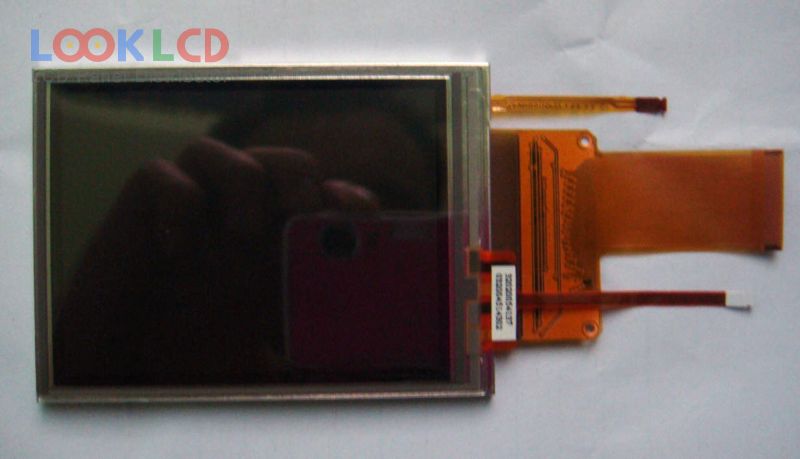

| PartNumber | LS030Q7DH01 |
| Marca | SHARP |
| mărimea | 3.0 |
| Aplicație | MPH |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 100 |
| CR | 70:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LS030Q7DH01 |
| tip panou | CG-Silicon , LCM |
| dimensiunea panoului | 3.0 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 45.72×60.96 mm |
| contur | 54.5×75 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 100 cd/m² (Typ.) |
| Raport de contrast | 70:1 (Typ.)(Transmissive)2.5:1 (Typ.)(Reflective) |
| culorile afișajului | 262K (6-bit), CIE193165% |
| timp de raspuns | 30/50 (Typ.)(Tr/Td) |
| unghi de vedere | 40/40/40/40 (Typ.)(CR≥2)(L/R/U/D) |
| tip lampa | 5S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 51 pins |
| tensiune de intrare | 3.3/5.0/8.0/-4.0/-8.0V (Typ.)(VSHD/VSHA/VDD/VSSD/GVSS) |
| aplicarea | MPH |
