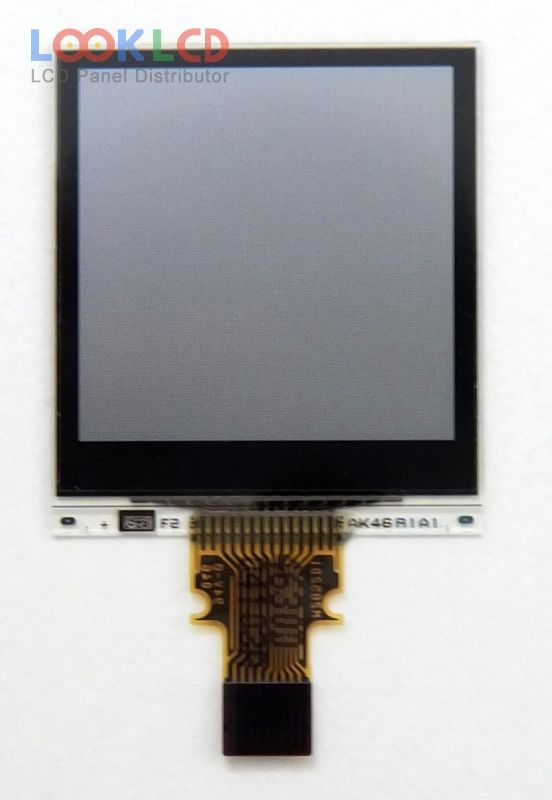

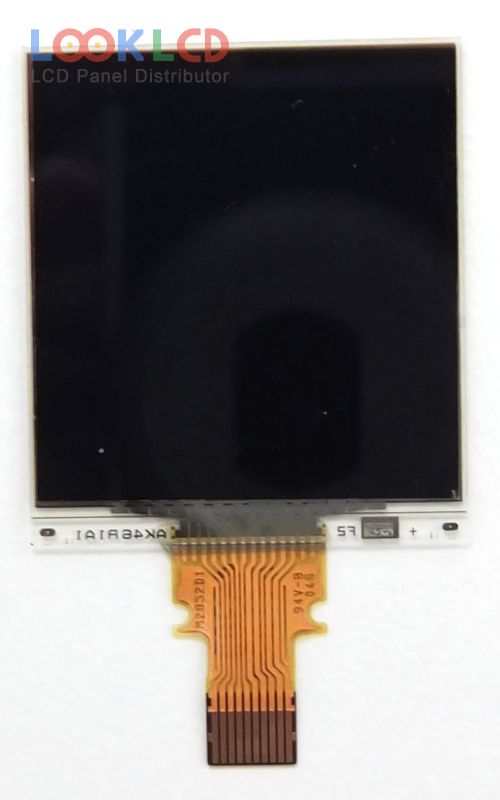

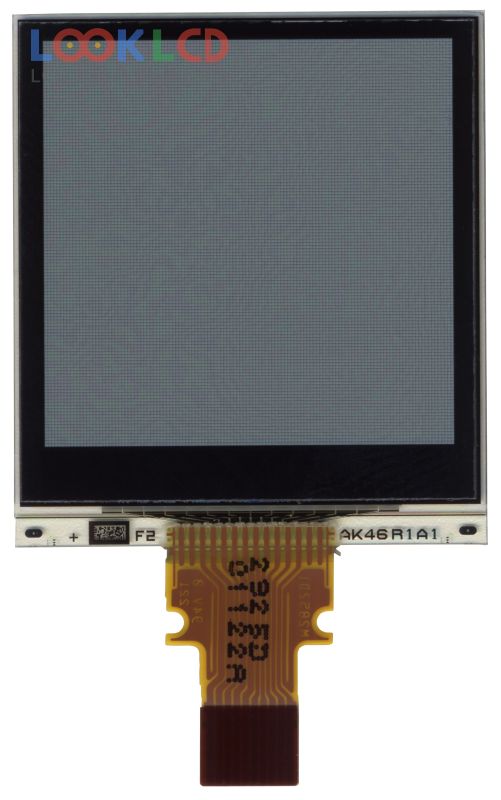

| PartNumber | LS013B7DH03 |
| Marca | SHARP |
| mărimea | 1.28 |
| Aplicație | EPT |
| Rezoluţie | 128×128 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | |
| Culori | Monochrome |
| Iluminare de fundal | No B/L |
| Interfață | SPI |
| marca panoului | SHARP |
| model de panou | LS013B7DH03 |
| tip panou | CG-Silicon , LCM |
| dimensiunea panoului | 1.28 inch |
| rezoluţie | 128×128 |
| modul de afișare | Transflective |
| Zonă activă | 23.04×23.04 mm |
| contur | 26.6×30.3 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | |
| Raport de contrast | 18:1 (Typ.)(Reflective) |
| culorile afișajului | Monochrome (1-bit) |
| timp de raspuns | 10/20 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/60/60 (Typ.)(CR≥2)(L/R/U/D) |
| tip lampa | No B/L |
| interfață de semnal | 3-wire SPI, 10 pins |
| tensiune de intrare | 3.3/3.3V (Typ.)(VDDA/VDD) |
| aplicarea | EPT |
| LS013B4DN01 | SHARP | 1.35 | 96×96 |
| LS013B4DN02 | SHARP | 1.35 | 96×96 |
| LS013B4DN04 | SHARP | 1.35 | 96×96 |
| LS013B7DH01 | SHARP | 1.26 | 144×168 |
| LS013B7DH03 | SHARP | 1.28 | 128×128 |
| LS013B7DH05 | SHARP | 1.26 | 144×168 |
| LS013B7DH06 | SHARP | 1.33 | 128×128 |
| EG020AS012 | PDI | 2.0 | 200×96 |
| EK014AS014 | PDI | 1.44 | 128×96 |
| EQ030AS181 | PDI | 3.0 | 320×240 |
| ET044AS013 | PDI | 4.4 | 400×300 |
| EW074AT012 | PDI | 7.4 | 480×800 |
| EW074BT011 | PDI | 7.4 | 480×800 |
| LS012B7DD01 | SHARP | 1.2 | 184×38 |
| LS013B7DH01 | SHARP | 1.26 | 144×168 |
| LS013B7DH03 | SHARP | 1.28 | 128×128 |
| LS027B4DH01 | SHARP | 2.7 | 400×240 |
