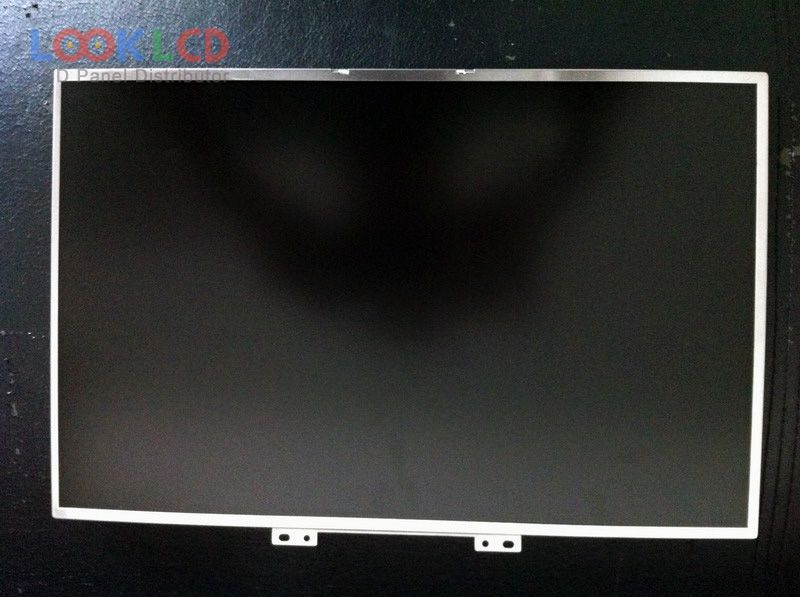

| PartNumber | LQ154M1LW02 |
| Marca | SHARP |
| mărimea | 15.4 |
| Aplicație | NBPC |
| Rezoluţie | 1920×1200 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SHARP |
| model de panou | LQ154M1LW02 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.4 inch |
| rezoluţie | 1920(RGB)×1200 , WUXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 331.2×207 mm |
| contur | 344×240×6.5 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Antiglare, Hard coating (2H), Reflection 1.7% (Max.) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 10/25 (Max.)(Tr/Td) |
| unghi de vedere | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLEmbedded (Inverter) |
| interfață de semnal | LVDS (2 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| rohs: | |
| aplicarea | NBPC |
| B154EW09 V1 | AUO | 15.4 | 1280×800 |
| B154PW02 V3 | AUO | 15.4 | 1440×900 |
| B154SW02 V3 | AUO | 15.4 | 1680×1050 |
| LQ154M1LW02 | SHARP | 15.4 | 1920×1200 |
| LQ154M1LW2A | SHARP | 15.4 | 1920×1200 |
| LTN154AT09-101 | Samsung | 15.4 | 1280×800 |
| LTN154BT02-004 | Samsung | 15.4 | 1440×900 |
| LTN154CT02-001 | Samsung | 15.4 | 1920×1200 |
| LTN154P1-L01 | Samsung | 15.4 | 1680×1050 |
| LTN154XB-L01 | Samsung | 15.4 | 1280×800 |
| B101EW02 V1 | AUO | 10.1 | 1280×720 |
| B140HTN01.1 | AUO | 14.0 | 1920×1080 |
| HT121X01-101 | HYDIS | 12.1 | 1024×768 |
| LP141WX3-TLR1 | LG Display | 14.1 | 1280×800 |
| LP156WF6-SPH3 | LG Display | 15.6 | 1920×1080 |
| LP171WP4-TLB4 | LG Display | 17.1 | 1440×900 |
| LTD133EQ1B | TOSHIBA | 13.3 | 1280×800 |
| LTN154X3-L06-6 | Samsung | 15.4 | 1280×800 |
| LTN173KT01-D01 | Samsung | 17.3 | 1600×900 |
| N133I1-L01 | Innolux | 13.3 | 1280×800 |
