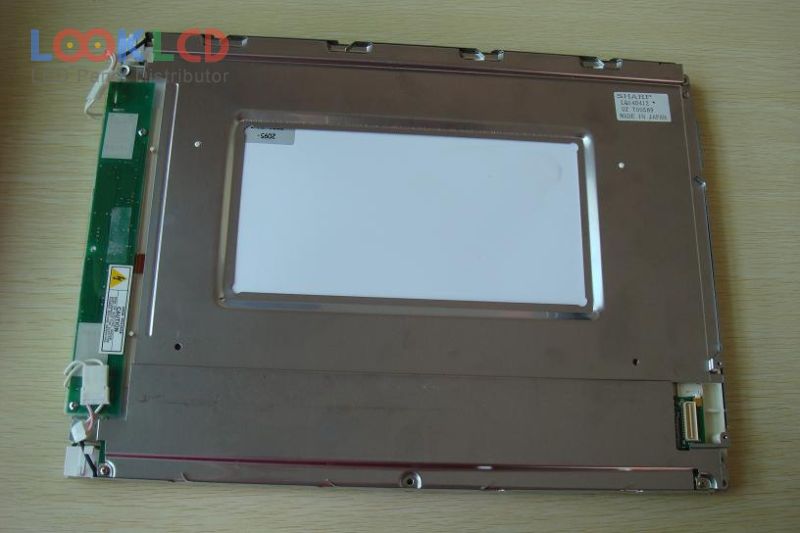

| PartNumber | LQ14D412 |
| Marca | SHARP |
| mărimea | 13.8 |
| Aplicație | DMPC |
| Rezoluţie | 640×480 |
| Compoziţie | LCM |
| Luminozitate | 180 |
| CR | 100:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ14D412 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 13.8 inch |
| rezoluţie | 640(RGB)×480 , VGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 281.3×207.8 mm |
| contur | 330×242 mm |
| suprafaţă | Antiglare (Haze 6%), Hard coating (2H) |
| luminozitatea | 180 cd/m² (Typ.) |
| Raport de contrast | 100:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 30/50 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| tip lampa | 2 pcsCCFLEmbedded (Inverter) |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 5.0V (Typ.)(VCC) |
| aplicarea | DMPC |
| LQ140Z1JW01 | SHARP | 14.0 | 3200×1800 |
| LQ141X1LH03 | SHARP | 14.1 | 1024×768 |
| LQ14D311 | SHARP | 13.8 | 640×480 |
| LQ14D412 | SHARP | 13.8 | 640×480 |
| LM150X08-TL01 | LG Display | 15.0 | 1024×768 |
| LM170E01-TLA1 | LG Display | 17.0 | 1280×1024 |
| LM230WF3-SLQ1 | LG Display | 23.0 | 1920×1080 |
| LTM181E4-L01 | Samsung | 18.1 | 1280×1024 |
| M170EN01 V9 | AUO | 17.0 | 1280×1024 |
| M185BGE-P02 | Innolux | 18.5 | 1366×768 |
| M190A1-L0A | Innolux | 19.0 | 1440×900 |
| M200FGE-L20 | Innolux | 20.0 | 1600×900 |
| M200RW01 V0 | AUO | 20.0 | 1600×900 |
| M270HW01 V0 | AUO | 27.0 | 1920×1080 |
