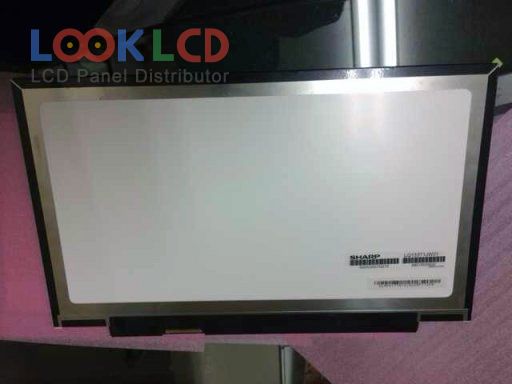

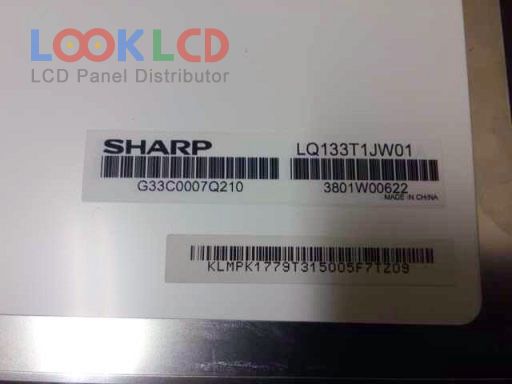

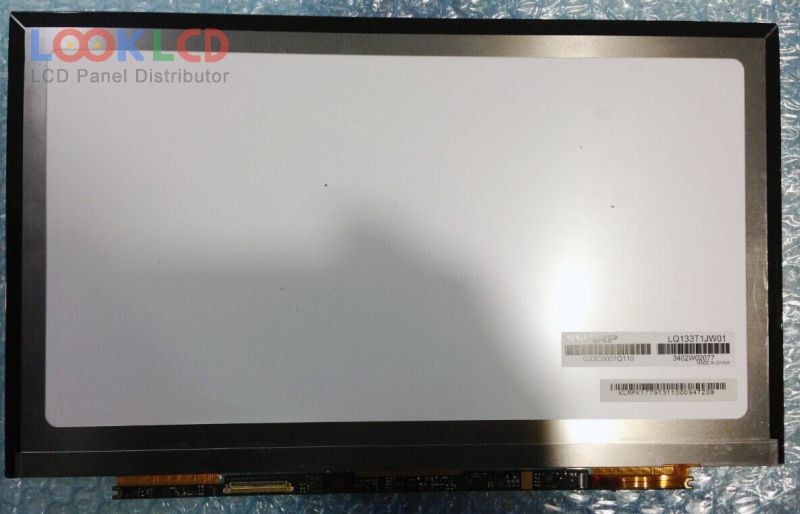

| PartNumber | LQ133T1JW01 |
| Marca | SHARP |
| mărimea | 13.3 |
| Aplicație | NBPC |
| Rezoluţie | 2560×1440 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | SHARP |
| model de panou | LQ133T1JW01 |
| tip panou | IGZO TFT-LCD , LCM |
| dimensiunea panoului | 13.3 inch |
| rezoluţie | 2560(RGB)×1440 , Quad-HD |
| modul de afișare | Normally Black, Transmissive |
| Zonă activă | 293.76×165.24 mm |
| contur | 305.35×187.9×3.05 mm |
| stilul formei | Slim (PCBA Flat, Depth ≤3.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (2H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | eDP (4 Lanes), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
