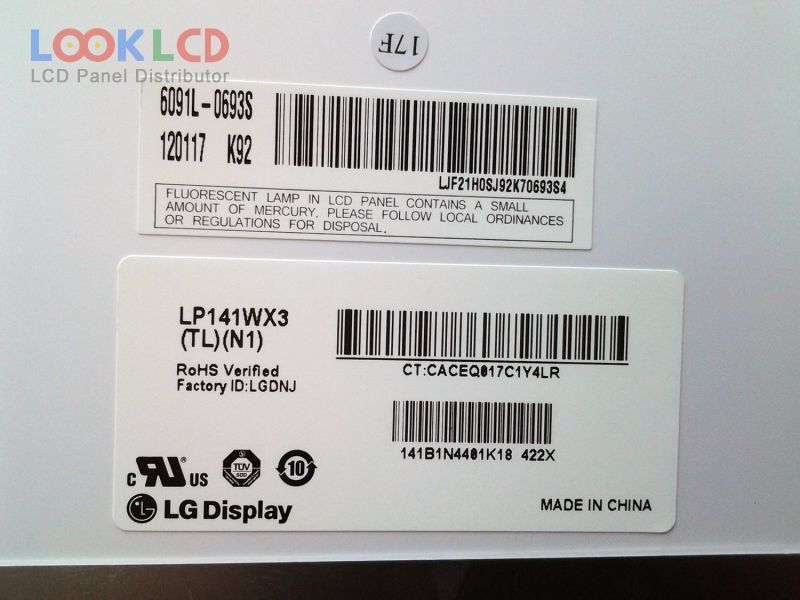

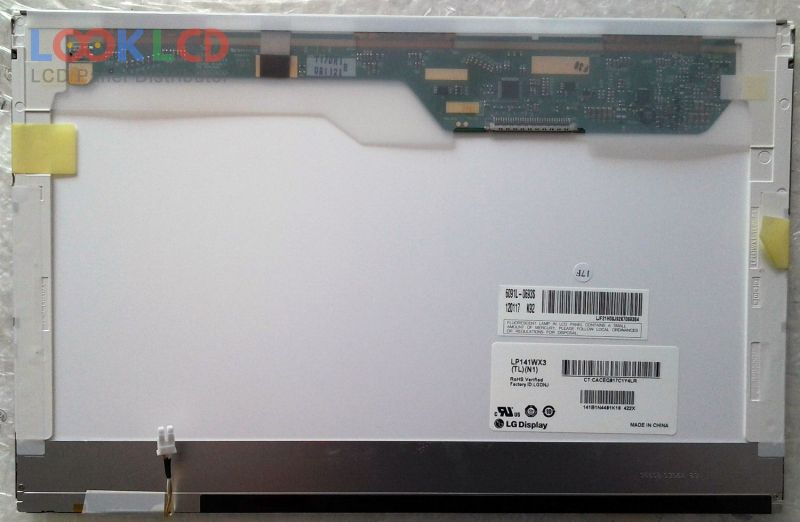

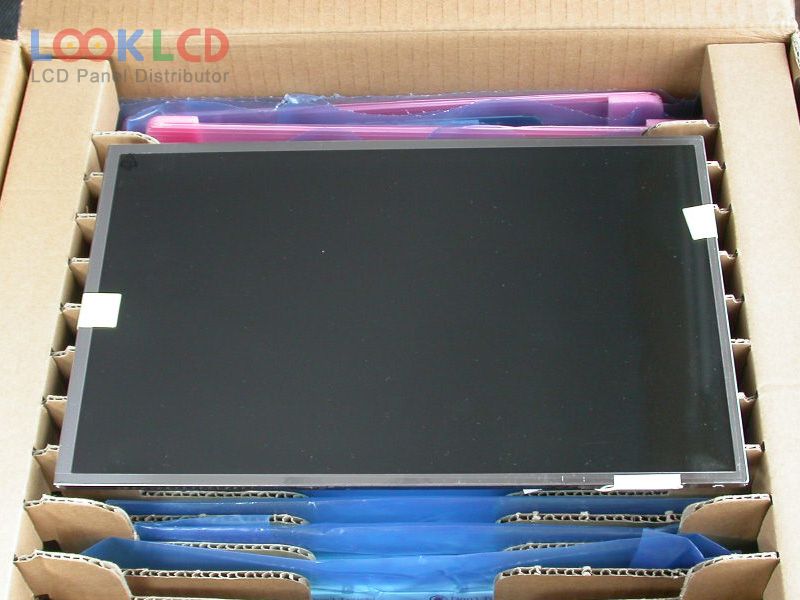

| PartNumber | LP141WX3-TLN1 |
| Marca | LG Display |
| mărimea | 14.1 |
| Aplicație | NBPC |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 300:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | LG.Philips LCD |
| model de panou | LP141WX3-TLN1 18 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 14.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 303.74×189.84 mm |
| contur | 319.5×205.5×5.5 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Min.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 40/40/15/35 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| LP141WP1-TLC1 | LG Display | 14.1 | 1440×900 |
| LP141WX1-TL02 | LG Display | 14.1 | 1280×800 |
| LP141WX1-TLE3 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLN1 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLN2 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLN4 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLB1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLC1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLN1 | LG Display | 14.1 | 1280×800 |
| LP141WXV-SLA2 | LG Display | 14.1 | 1280×800 |
| B140XW01 V0 | AUO | 14.0 | 1366×768 |
| B154EW02 V0 | AUO | 15.4 | 1280×800 |
| CLAA156WA01A | CPT | 15.6 | 1366×768 |
| LP140WH1-TLB3 | LG Display | 14.0 | 1366×768 |
| LP140WH8-TLA1 | LG Display | 14.0 | 1366×768 |
| LP154WX5-TLB2 | LG Display | 15.4 | 1280×800 |
| LTD121EQ3B | TOSHIBA | 12.1 | 1280×800 |
| LTN140AT21-T01 | Samsung | 14.0 | 1366×768 |
| LTN141X4-156 | Samsung | 14.1 | 1024×768 |
| LTN160AT06-B01 | Samsung | 16.0 | 1366×768 |
