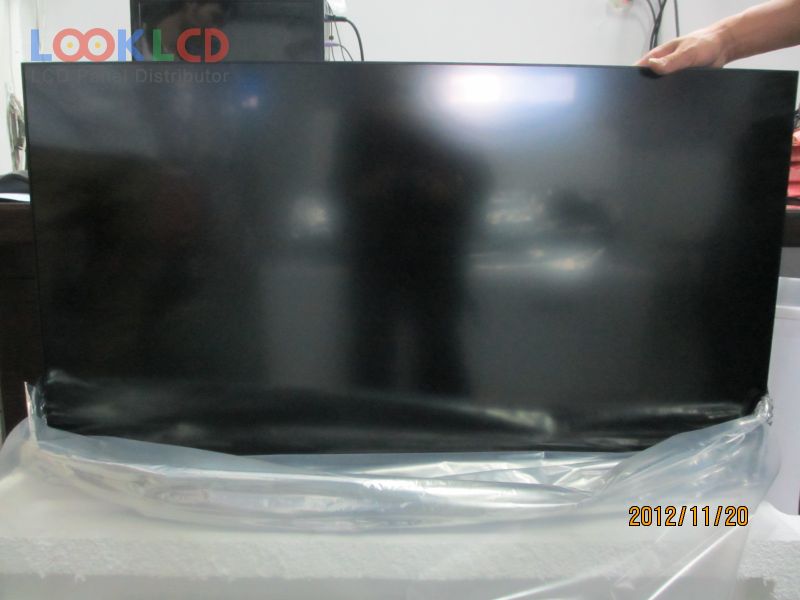

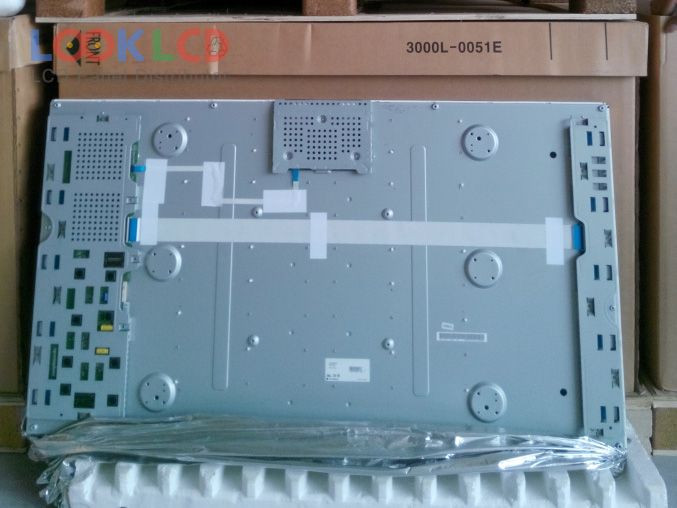

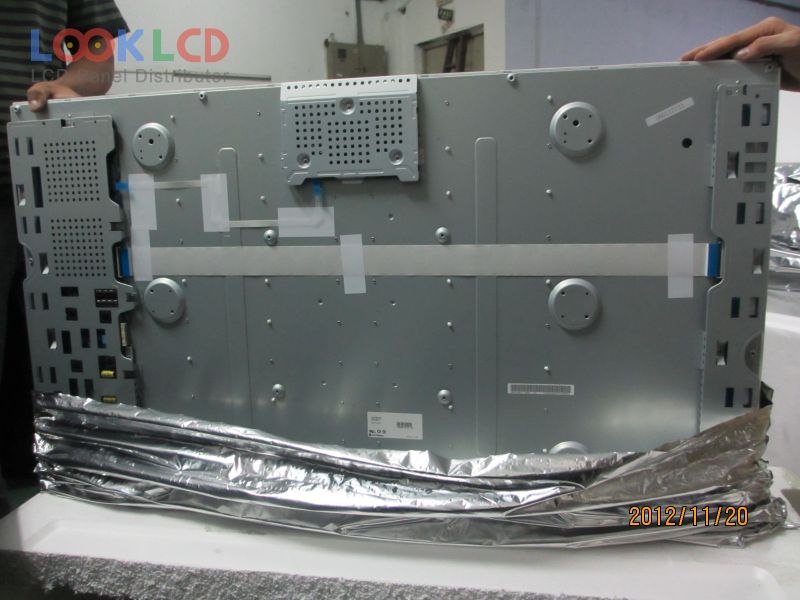

| PartNumber | LD470DXS-SCB1 |
| Marca | LG Display |
| mărimea | 47 |
| Aplicație | DID |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 1400:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LD470DXS-SCB1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 47 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | S-IPS, Normally Black, Transmissive |
| Zonă activă | 1039.87×584.64 mm |
| contur | 1046.8×591.6×50.5 mm, Videowall Seam 6.9 mm |
| suprafaţă | Antiglare (Haze 10%), Hard coating (3H) |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 1400:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 12 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 8-bit), 30 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | DID |
