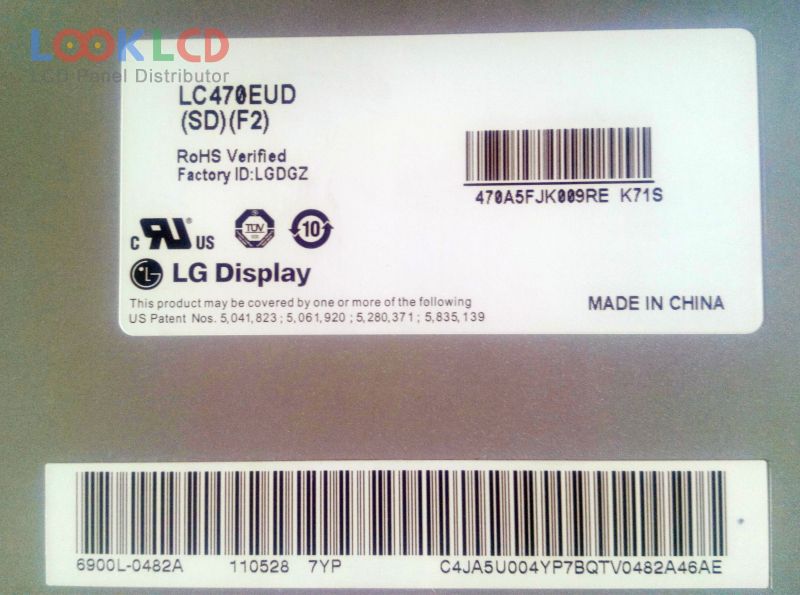

| PartNumber | LC470EUD-SDF2 |
| Marca | LG Display |
| mărimea | 47 |
| Aplicație | LCTV |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 1600:1 |
| Culori | 16.7M/1.06B |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | LG Innotek |
| model de panou | LC470EUD-SDF2 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 47 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | S-IPS, Normally Black, Transmissive |
| Zonă activă | 1039.68×584.82 mm |
| contur | 1078.6×626 mm |
| suprafaţă | Antiglare (Haze 10%), Hard coating (2H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 1600:1 (Typ.) |
| culorile afișajului | 16.7M/1.06B (8-bit / 8-bit + Dithering), CIE193172% |
| timp de raspuns | 6 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 120Hz+120Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (4 ch, 8/10-bit), 92 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
