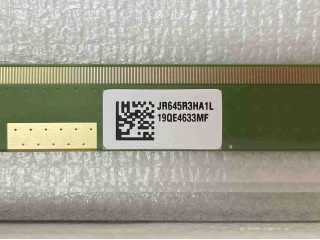

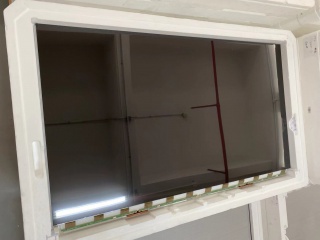

| PartNumber | JR645R3HA1L |
| Marca | SDP |
| mărimea | 65 |
| Aplicație | TV Sets |
| Rezoluţie | 3840×2160 |
| Compoziţie | CELL, a-Si TFT-LCD |
| Luminozitate | |
| CR | 4000:1 |
| Culori | 1.07B |
| Iluminare de fundal | No |
| Interfață | |
| producător | SDP |
| numele modelului | JR645R3HA1L |
| marimea ecranului | 65 inch |
| tipul de ecran | CELL, a-Si TFT-LCD |
| numărul de pixeli | 3840(RGB)×2160 (UHD) 68PPI |
| aranjament | RGB Vertical Stripe |
| zona activa (mm) | 1428.48 × 803.52 (H×V) |
| contur (mm) | 1438.48 × 815.02 × 1.33 (H×V×D) |
| zona rama (mm) | - |
| tratament | Antiglare (Haze 5%), Hard coating (2H) |
| luminanţă | 0 cd/m² |
| Raport de contrast | 4000 : 1 (Typ.) (TM) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥10) |
| raspuns | 8 (Typ.)(G to G) ms |
| vedere buna la | Symmetry |
| modul de lucru | UV2A, Normally Black, Transmissive |
| grosimea sticlei | 0.50+0.50 mm |
| transmisivitatea | 5.1% (Typ.)(with Polarizer) |
| adâncimea culorii | 1.07B 71% NTSC |
| lumina de fundal | No B/L |
| masa | 3.45±0.17Kgs |
| folosit pentru | TV Sets |
| rată de reîmprospătare | 60Hz |
| touch screen | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LC650DUF-FGF1 | LG Display | 65 | 1920×1080 |
| P645HW03 V0 | AUO | 65 | 1920×1080 |
| P650HVN02.3 | AUO | 65 | 1920×1080 |
| T650HVN04.1 | AUO | 65 | 1920×1080 |
| T650HVN05.4 | AUO | 65 | 1920×1080 |
| T650HVN05.9 | AUO | 65 | 1920×1080 |
| T650QVF04.0 | AUO | 65 | 3840×2160 |
| T650QVF05.0 | AUO | 65 | 3840×2160 |
| V650DJ4-KS5 | Innolux | 65 | 3840×2160 |
| V650HP1-PS6 Rev.C1 | Innolux | 65 | 1920×1080 |
